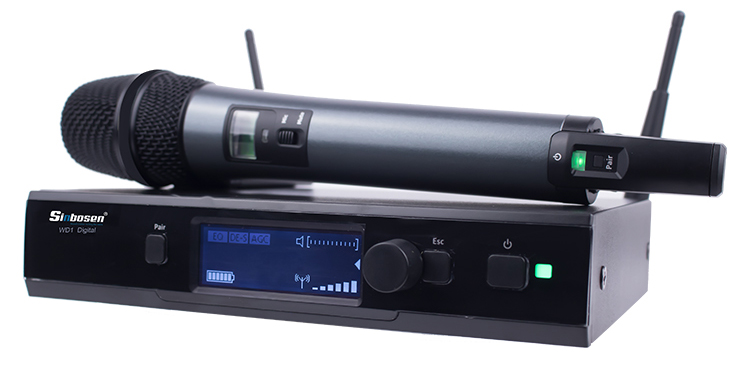

Sinbosen Karaoke Microphone WED1 Wireless Microphone System with Cardioid Dynamic Vocal Handheld Microphone
WIRELESS MICROPHONE

Sinbosen Karaoke Microphone WED1 Wireless Microphone System with Cardioid Dynamic Vocal Handheld Microphone

Brand: Sinbosen
Model: WED1
Type: UHF and Digital Wireless Microphone
Frequency Range: 626-668mhz
Color: Black
Warranty: 2 Years
Payment Terms:L/C, T/T, Western Union, Paypal, Money Gram
Description Sinbosen Audio Factory





Sinbosen karaoke microphone WED1 wireless microphone system with handheld microphone

HF sensitivity < -90 dBm
Transmitting power of the feedback channel 10 mW/100 mW (country-specific version)
Audio output level gain
 Mic/Line Level Shifter -12 dB/0 dB
XLR, symmetrical max +18dBu
Plug, asymmetry / symmetry max +12 dBu / max +18 dBu
Audio effect
Low cut filter 120Hz
Equalizer Seven-segment graphic equalizer
Beep eliminator Multi-frequency target
Automatic Gain Control (AGC) Uses the automatic gain compensation function to compress/stretch
Display OLED

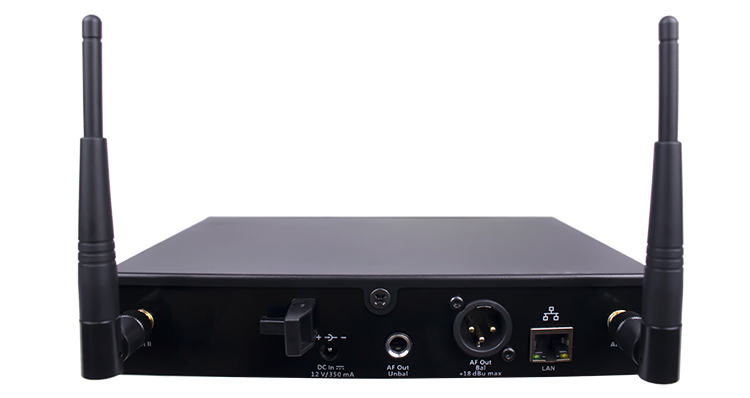

Low frequency connection jack   XLR/6.3 mm plug
Antenna interface 2 X R-SMA
Network interface   RJ45
Network Protocol Multimedia Control Protocol, UDPIPv4 (DHCP, User Manual) /IPv6
Power supply 12 v DC coaxial plug
Current consumption 350 mA
Weight About 824g

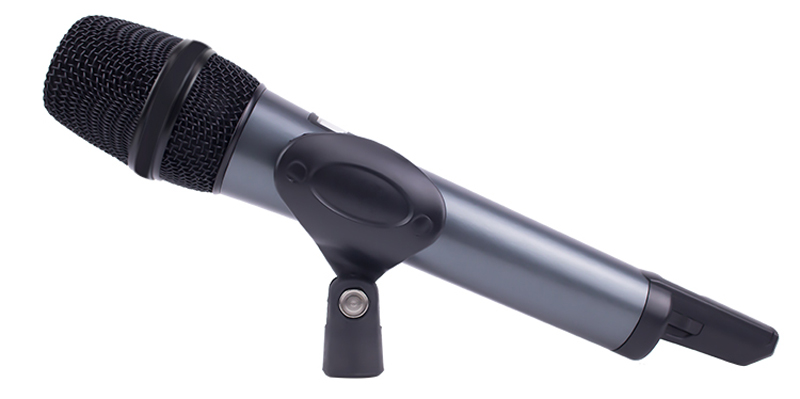

Handheld microphone

Microphone type Cardioid dynamic vocal microphone
Sensitivity 2.1 mV/Pa
Pickup Features Heart Shape
Maximum sound pressure level 154 dBSPL
Transmitting power Adaptive adjustment within 100mW or 10mW
Low frequency transmission range 50 to 20,000 Hz
Input signal sensitivity Automatic sensitivity adjustment
power supply
Battery 2 AA type (1.5V)
Battery Life
Battery Typical 6 hours
Display LCD
Weight (without battery) approx. 280g, including microphone head

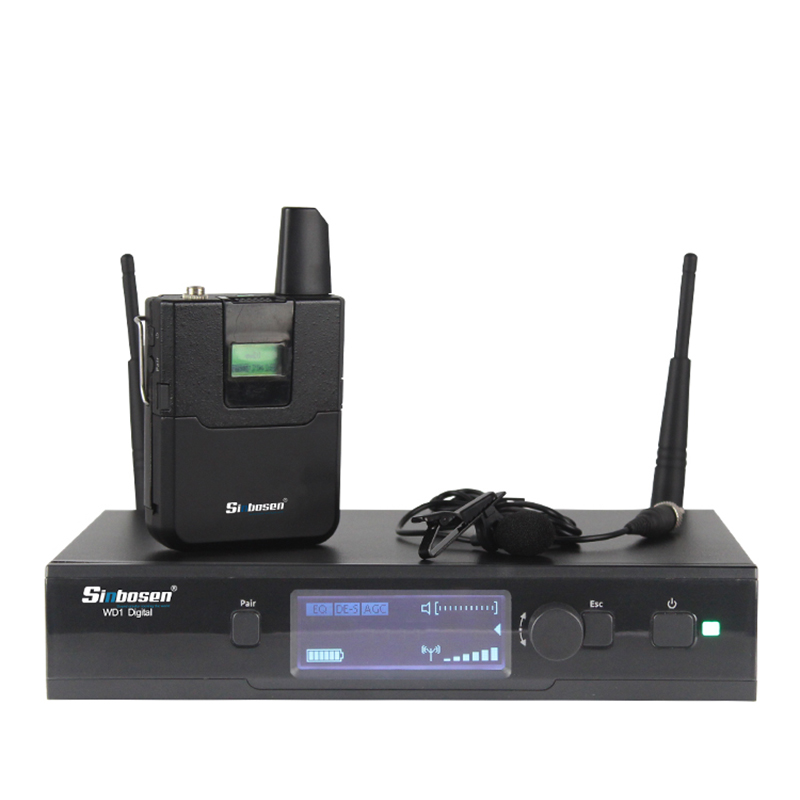

Bodypack

Transmitting power Adaptive adjustment within 100mW or 10mW
Low frequency transmission range
Microphone 50 to 20,000 Hz
Line 20 to 20,000 Hz
Maximum input level
Microphone 2.2 V RMS
Line 3.3V RMS
Input impedance of the line 1 mW
Input signal sensitivity Automatic sensitivity adjustment
power supply
Battery 2 AA type (1.5v)
Battery lifeattery life 6 hours typical
Low frequency link jack 3.5mm jack with thread
Weight (without battery) approx. 85 g












Address: 6th Floor, Building 7, Xiajijiao, Tinggang, Hongxing Village, Shimen Street, Baiyun District, Guangzhou, Guangdong, China
Welcome to visit our factory!







Power Amplifier Production Process
A power amplifier, which consists of thousands of parts, the quality of the parts, and the details of the production process,
determines whether it is an excellent power amplifier. Our mission is to carefully manufacture each amplifier
so that it fits perfectly with every performance of the customer.


1. COMPONENTS TEST
Component quality inspection: It can determine the quality of resistors, capacitors, inductors, transformer, and transistors.

2. WELDING
The most important function of PCB soldering is to weld all the components together and let them play their roles. The solder joints and the protection component solder joints are not oxidized and dropped off.

3.COMPONENTS ASSEMBLY
In accordance with the specified technical requirements, workers join several parts into components carefully.


4. SEMI-FINISHED PRODUCT TEST  to ensure effective control of product quality.
4-1. Test amplifier board
4-2. Test output and input board
4-3. Test amplifier power supply board
4-4. Test amplifier indicator light


5. PRODUCT ASSEMBLY
Assemble the components according to the specified technical requirements, after debugging and inspection to make them to be qualified products.

6-1. FINISHED PRODUCT TEST
Completely inspect and test the finished product before packing. The oscilloscope can directly display the signal waveform and measure the instantaneous value of the signal.
6-2. Measure the operating voltage of the electronic circuit or component and compare it with the normal value to judge the fault.


7. AGING TEST
Aging test 8-10 hours before packing, ensure the quality of the product is qualified before packing.

8. FINISHED PRODUCT
Finish all the tests and waiting for clean up.

9. PACKING
Use a thick cardboard box, foam and carton protection corner to make transportation without problems.
