Sinbosen AXT200S condenser UHF dual channel handheld digital wireless microphone
Item No.: AXT200S
Brand: Sinbosen
Model: AXT200S
Working distance: 100m
Communication: Wireless
Style: Digital handheld Microphone
Frequency range: UHF 615-665MHz, 780-820MHz
Microphone capsule: Condenser capsule
Application: Stage Performance
Model: AXT200S
Working distance: 100m
Communication: Wireless
Style: Digital handheld Microphone
Frequency range: UHF 615-665MHz, 780-820MHz
Microphone capsule: Condenser capsule
Application: Stage Performance
Description
Phase-locked loop (PLL) frequency synthesis (800 available frequency point)

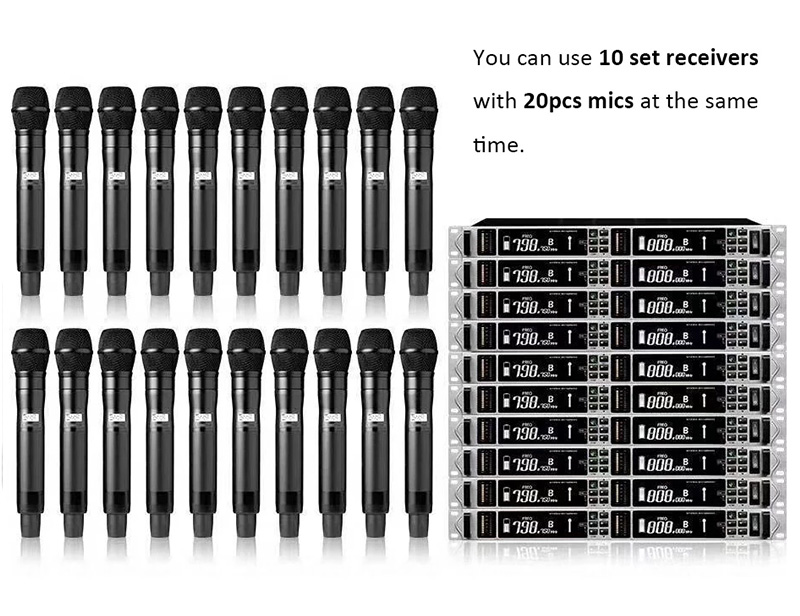

The PLL phase-locked oscillating circuit, combined with noise detection and mute control function, can reduce noise and radio frequency interference.You can use 10 set receivers with 20 pcs mics at the same time.
Product parameters
| AXT200S | |
| UHF frequency band,automatic frequency | |
| Phase-locked loop (PLL) frequency synthesizer | |
| Receiver automatically scans | |
| Hair shooter microphone with two tranches of power regulation | |
| Superheterodyne double conversion design with a high receiver sensitivity | |
| Superheterodyne double conversion design with a high receiver sensitivity | |
| Multi-level high-performance surface acoustic wave filters with excellent anti-jamming capability | |
| Microphone use Tesco on the 5th battery, continued up to 6-8 hours | |
| Transmitter choose: Handheld/Headmic/Clipmic | |
| The idael environment for operating radius of 100 meters | |
| Configuring ID code lock:Point to point encrypt.With a separate ID code assignment, the receiver locks the corresponding transmitter ID code, greatly reducing crosstalk. | |
| AXT200S | ||
| Frequency range: | UHF 615-665MHz, 780-820MHz | |
| Battery(microphone) | AA × 2 | |
| Channels | dual channel(A, B dual-channel frequency wave A, B channel 0 seconds cutover,ensure the signal is stable and reliable) | |
| Modulation method | FM | |
| Sensitivity | S / N> 60dB when the offset is equal to 25KHz and input 6dBμV | |
| Frequency stability | ± 0.0005% | |
| Bandwidth | 40MHz | |
| Maximum deviation | ± 45kHz | |
| General T.H.D. | <0.4% @ 1 KHz | |
| Integrated S / N ratio | > 108 dB | |
| Integrated frequency response | 65Hz ~ 18kHz ± 3dB | |
| Unbalanced | -4dBV / 5KΩ | |
| Maximum output voltage | Balanced: -20dBV / 100Ω | |
| Output socket | XLR balanced and 6.3φ unbalanced socket | |
| Power supply | 100 - 240V AC50 / 60 Hz, 10W | |
 |
 |
 |
 |
 |
 |
