Sinbosen Pole-Mount Speaker Combos: The Flexible Live Sound Choice
Views : 37
Update time : 2026-08-03 14:54:28
Pole-Mountable Loudspeakers: A Flexible Choice for Professional Sound Reinforcement Systems
In the field of professional audio, the mounting method of a loudspeaker directly impacts sound field coverage and venue adaptability. Pole mounting—a mature and widely adopted installation solution—is becoming the preferred choice for live performance venues, conference halls, and multi-purpose spaces, thanks to its flexibility, convenience, and excellent acoustic performance.
What is Pole Mounting?
Pole mounting refers to a method of securing a loudspeaker above a subwoofer or onto a standalone stand using a dedicated mounting pole.
Technical Linkage of Pole-Mount Installation:
Lower interface: 35 mm pole socket or M20 threaded flange on the subwoofer top panel.
Intermediate medium: Sinbosen pole (available in 35 mm straight-insert and M20 threaded versions).
Upper interface: 35 mm pole socket on the full-range enclosure bottom, or dedicated U-bracket adapter.
Load-matching principle: Pole rated load ≥ (full-range net weight + adapter weight) × 1.5 safety factor.
Angle adjustment: Dual-angle or multi-position tilt directly affects vertical coverage.
Sinbosen Pole-Mount Speaker Combo
Ⅰ. 08X / 12X / 15X HiQ + KA18 Speaker Combo
|
|
Lower: KA18 features a 35 mm pole-mount socket officially approved for X-Series enclosures. |
|
Parameter
|
||||
|
Driver size
|
LF: 1×8″, HF: 1×1.5″
|
LF: 1×12″, HF: 1×3″
|
LF: 1×15″, HF: 1×3″
|
LF: 1×18″
|
|
Solo freq. resp. (-10 dB)
|
60 Hz – 20 kHz
|
59 Hz – 20 kHz
|
55 Hz – 20 kHz
|
32 Hz (LF limit)
|
|
Coverage angle
|
100° axisymmetric
|
90° × 60°
|
60° × 40°
|
Standard or Cardioid
|
|
Max SPL
|
129 dB
|
136 dB
|
138 dB
|
138 dB
|
|
Weight
|
12 kg
|
20 kg
|
21 kg
|
52 kg
|

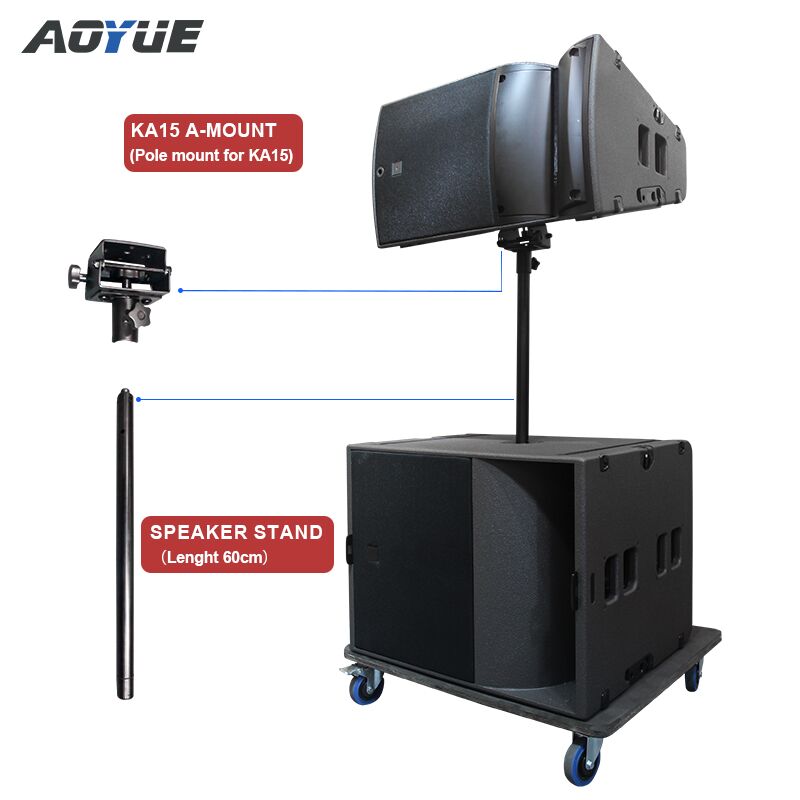

Ⅱ.KA15 Wide + KA21 Speaker Combo (Official Pole-Mount Installation)
 |
Lower: KA21 features a 35 mm pole socket + M20×150 threaded insert
Upper: KA15 achieves pole-mount via the A-MOUNT accessory, with multi-position tilt angles. Combined frequency response: KA15 + KA21 (Preset [KA15] + [KA21_60]) = 29 Hz – 20 kHz (LF extension + reinforced contour).
|
Ⅲ. KA10 Wide / Focus + KA21 Speaker Combo (Official Pole-Mount Installation)
Mounting method: Shares the same A-MOUNT and KA21 pole-mount interface as the KA15.
Combined frequency response: KA10 + KA21 (Preset [KA10] + [KA21_100]) = 31 Hz – 20 kHz (LF extension + reinforced contour).
|
Parameter
|
||
|
Driver size
|
LF: 1×10″, HF: 1×2.5″
|
LF: 1×21″
|
|
Solo freq. resp. (-10 dB)
|
67 Hz – 20 kHz
|
29 Hz (LF limit)
|
|
Coverage angle
|
H: 70°/110°/90° (Panflex), V: 30°
|
Standard or Cardioid
|
|
Max SPL
|
137 dB
|
138 dB
|
|
Weight
|
20 kg
|
49 kg
|

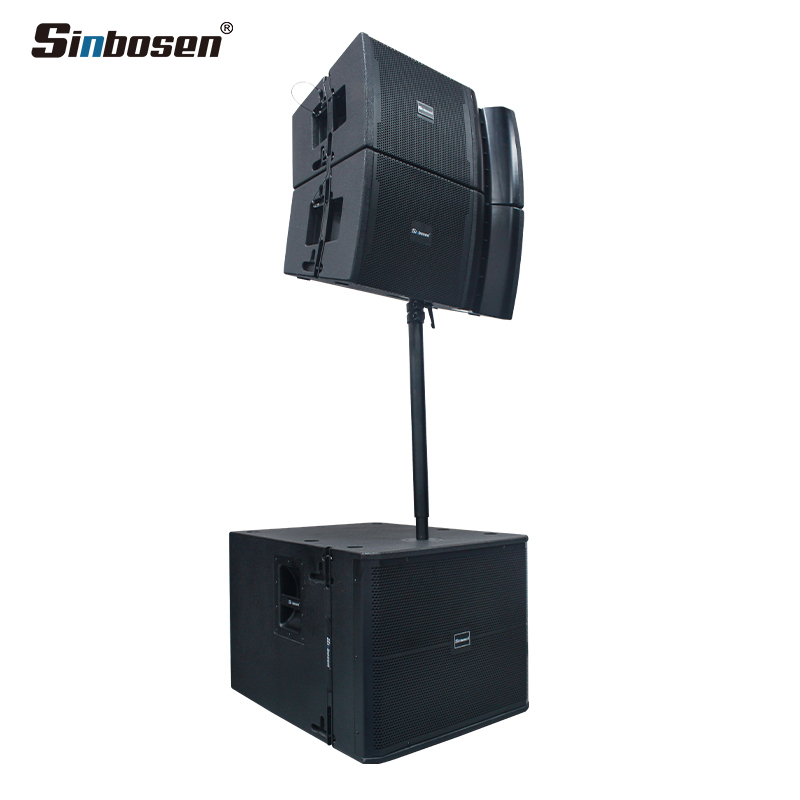

Ⅳ. KA208 + KA18 Speaker Combo (Sinbosen Custom Adapter Solution)
 |
KA208 + KA18 Sinbosen solution: Sinbosen provides a custom adapter bracket system that enables pole-mount installation of KA208 modules on KA18, as demonstrated in the product image. The adapter bridges the KA18's pole interface to KA208's rigging points, bypassing the native incompatibility. Combined frequency response: KA208 II + KA18 = 32 Hz – 20 kHz (KA18 extends the system LF limit from 55 Hz down to 32 Hz).
|

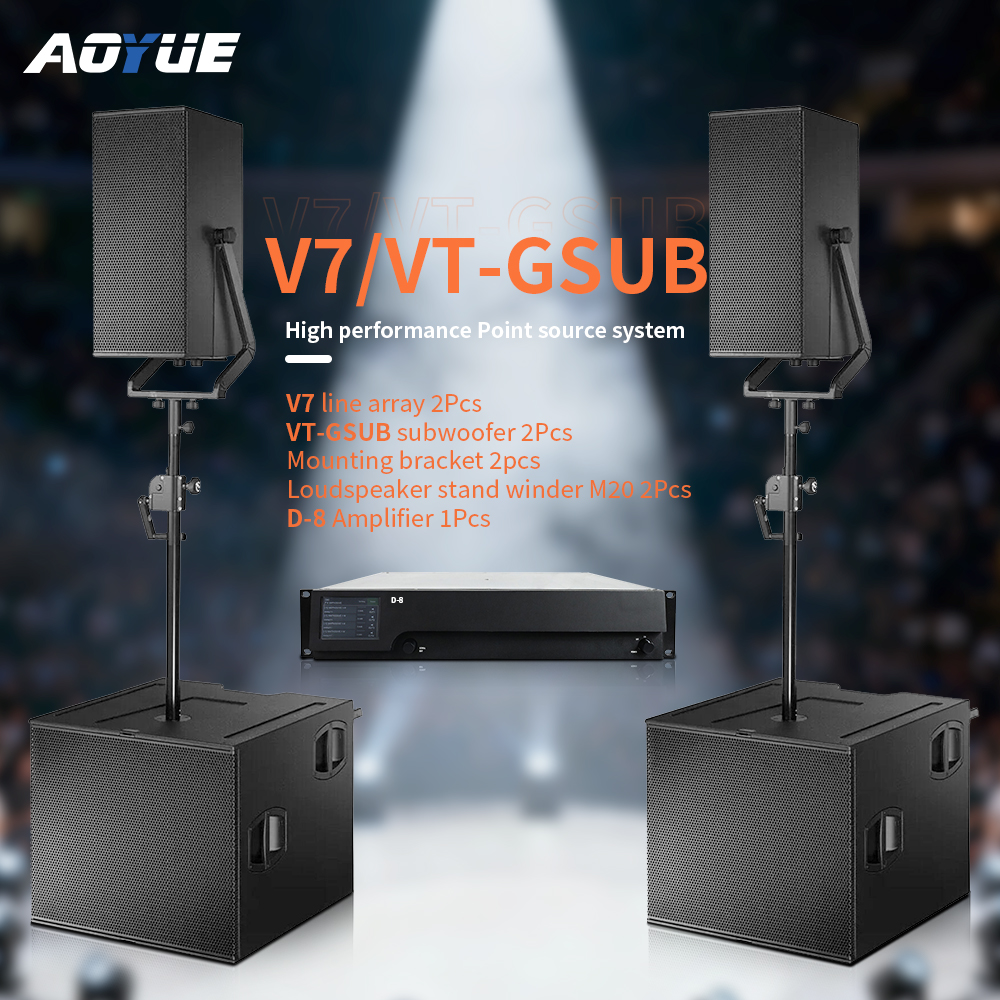

Ⅴ. VT-7P / VT-10P + VT-GSUB Speaker Combo— Pole Mount via Z5383 U-Bracket Adapter
 |
Lower: VT-GSUB top panel features an M20 high stand flange for pole insertion.
Upper: V-7P/V-10P does NOT have a native 35 mm pole socket on the enclosure bottom. Pole-mount requires the d&b Z5383 VP Mounting Bracket (U-bracket). Mechanism: The Z5383 U-bracket clamps around the V-7P/V-10P enclosure; the bracket's integrated 35 mm tube sleeve slides over a standard M20 pole, which threads into the VT-GSUB's M20 flange. Combined frequency response: V-7P/V-10P + V-GSUB = 37 Hz – 18 kHz (VT-GSUB covers 37–115 Hz; V-7P/V-10P covers 59 Hz–18 kHz; system LF limit determined by VT-GSUB at 37 Hz). |
|
Parameter
|
V-10P
|
||
|
Driver size
|
LF: 2×10″, MF: 1×8″, HF: 1×1.4″
|
LF: 2×10″, MF: 1×8″, HF: 1×1.4″
|
LF: 1×18″ (front), 1×12″ (rear bandpass)
|
|
Solo freq. resp. (-5 dB)
|
59 Hz – 18 kHz (std) / 100 Hz – 18 kHz (CUT)
|
59 Hz – 18 kHz (std) / 100 Hz – 18 kHz (CUT)
|
37 Hz – 115 Hz (std) / 37 Hz – 95 Hz (100 Hz mode)
|
|
Coverage angle
|
75° × 40° (rotatable horn)
|
110° × 40° (rotatable horn)
|
Cardioid
|
|
Max SPL
|
140 dB
|
139 dB
|
137 dB
|
|
Weight
|
33 kg
|
33 kg
|
61 kg
|

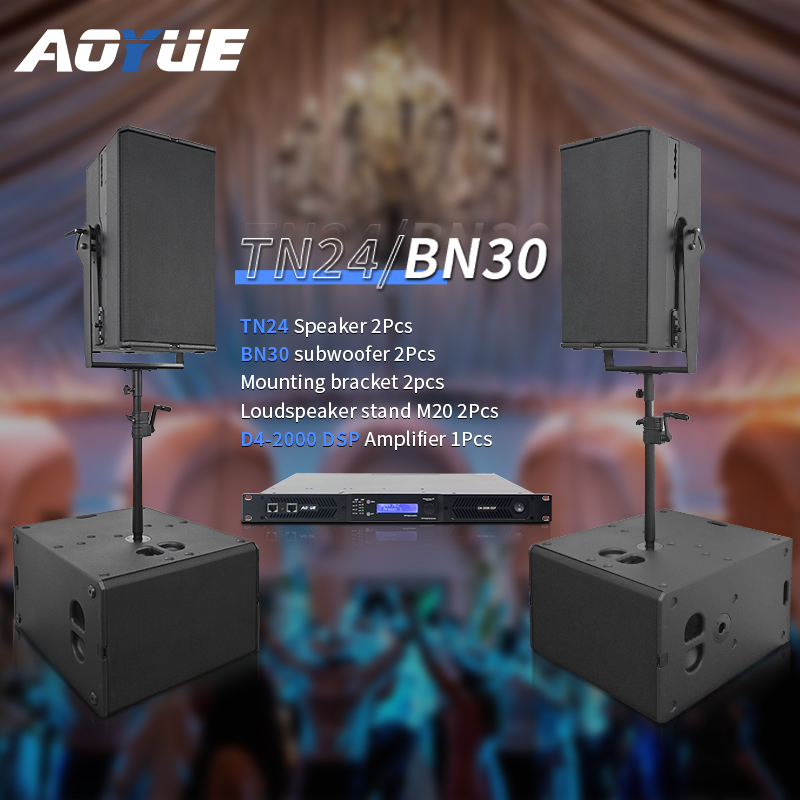

Ⅵ.TN24/BN30 Speaker Combo
 |
Lower: BN30 features two M20 pole-mount flanges and stacking recesses.
Upper: TN24 mounts via the SBT24 Swivel Bracket on a speaker stand / distance pole.
Combined frequency response: TN24 + BN30 = 35 Hz – 18 kHz (B30 covers 35–125 Hz; TN24covers 65 Hz–18 kHz; the system LF limit is determined by the B30 at 35 Hz).
|
Ⅶ. V932 + V918S Speaker Combo
 |
Lower: V918S equipped with M20 threaded pole socket.
Upper: V932 equipped with Dual-Angle 36 mm pole-mount socket, supporting 0° and -10° tilt positions. Combined frequency response: V932 + V918S = 31 Hz – 20 kHz (V918S covers 31–220 Hz; V932 covers 57 Hz–20 kHz; the system LF limit is determined by the V918S at 31 Hz).
|
Core Advantages of Pole Mounting
Flexible & Rapid Deployment: Unlike traditional setups that demand complex rigging or permanent wall mounts, pole mounting simply requires inserting the pole into the subwoofer base and securing the top cabinet. For mobile performances, temporary conferences, or outdoor events, a complete system can go from transport to show-ready in minutes—significantly reducing time and labor costs.
Acoustic Optimization & Seamless Coupling: Mounting the full-range speaker directly above the subwoofer optimizes acoustic coupling. Low frequencies radiate from the ground while high frequencies project from ear-level and above, creating a coherent, full-bodied soundfield. Compared to split-placement setups, pole mounting minimizes phase cancellation, enhancing clarity and impact.
Space-Saving & Clean Aesthetics: By stacking the system vertically, the setup footprint is limited to the area of a single subwoofer. Whether tucked into a compact bar corner or placed on a crowded stage, it delivers high SPL without compromising floor space. Tidy cable routing and a cohesive design provide a sleek, professional look.
Adjustable Height for Versatile Applications: Many professional-grade distance poles feature manual hand cranks or gas-assist lifting mechanisms, allowing precise height adjustments. Whether raised high to throw over dense crowds or lowered for intimate near-field coverage, pole mounting adapts effortlessly to any venue.
Supported Speaker Configurations
When selecting a pole-mountable system, consider the following structural requirements:
| Consideration | Description |
| Bottom Socket | Full-range cabinet must feature a standard 35 mm pole-mount socket. |
| Subwoofer Receiver | Subwoofer top panel must include a compatible thread/socket (e.g., M20). |
| Load Capacity | Pole and mounting points must safely support the weight of the top cabinet. |
| System Stability | The combined center of gravity must ensure adequate tilt resistance. |
Common pole-mount configurations include:
8" Coaxial Top + 18" Subwoofer: Compact and high-efficiency; ideal for small gigs, meeting rooms, and cafes.
12" Coaxial Top + 18" Subwoofer: The industry workhorse for mid-to-large venues, balancing high SPL with portability.
15" Coaxial Top + 18" Subwoofer: Designed for outdoor shows and large banquet halls requiring long-throw coverage.
Example: The Aoyue Speaker Combo Series (featuring the 08X, 12X, and 15X full-range coaxial cabinets) natively supports pole mounting via the KA18 18" subwoofer and a hand-crank distance pole. This enables rapid deployment across various room sizes, offering broad frequency response (55 Hz–20 kHz) and peak output up to 138 dB (08X), 136 dB (12X), and 129 dB (15X).
Installation & Safety Guidelines
Surface Stability: Position the subwoofer on a flat, solid surface. Use isolation pads or adjustable feet on uneven ground.
Height Limits: Never extend the distance pole beyond the manufacturer’s specified maximum safety mark to prevent top-heaviness and tip-over hazards.
Cable Management: Secure signal and power cables along the pole using velcro straps or cable clips to eliminate trip hazards and strain on the inputs.
Routine Inspection: Regularly inspect the pole locking mechanisms, socket wear, and threaded connections for structural integrity.
Conclusion
Combining high efficiency with professional acoustic output, pole mounting redefines portable sound reinforcement. For touring crews prioritizing fast load-ins or venues requiring versatile spatial layouts, choosing a pole-mountable loudspeaker system is a smart, high-performance investment.
