Passive Speaker

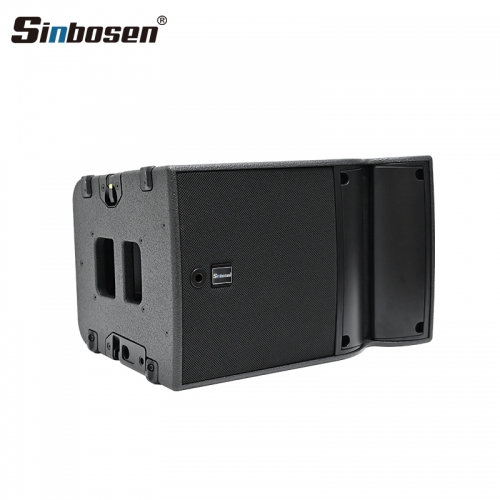

KA10 Adjustable Fins Line Array 2way 10 inch passive speaker
Item No.: KA10 Wide/Focus
Transducers: 1 × 10" / 1 × 2.5" neodymium
Directivity: 70° / 110° symmetric or 90° asymmetric
Nominal Impedance: 8 Ω
SPL max: 137 dB (wide);140 dB(focus)
Directivity: 70° / 110° symmetric or 90° asymmetric
Nominal Impedance: 8 Ω
SPL max: 137 dB (wide);140 dB(focus)
Description
|
Model
|
KA10 Wide
|
KA10 Focus
|
|
Usable Bandwidth (-10 dB)
|
67 Hz - 20 kHz
|
66 Hz - 20 kHz
|
|
Maximum SPL
|
137 dB
|
140 dB
|
|
Weight (net)
|
20 kg / 44 lb
|
22 kg / 49 lb
|
|
Nominal Directivity (-6 dB)
|
Enclosure: 30°
|
Enclosure: 10°
|
|
L-Fins: 70° / 110° symmetric or 90° asymmetric
|
||
|
Transducers
|
LF: 1 × 10" neodymium cone driver
|
|
|
HF: 1 × 2.5" neodymium diaphragm compression driver
|
||
|
Acoustical Load
|
LF: Laminar venting, bass-reflex
|
|
|
HF: Constant-curvature wavefront technology,
Adjustable-Fins |
||
|
RMS power handling
|
296W
|
|
|
Amplification
|
by A-4X / A-12X
|
|
|
Nominal Impedance
|
8 Ω
|
|
|
Connectors
|
2 × 4-point speakON
|
|
|
Rigging and Handling
|
- Flush-fitting 2-point rigging system
|
|
|
- 2 × handle
|
||
|
- 8 × corner stop
|
||
|
- 2 × ground runner
|
||
|
- 1 M8 threaded insert
|
||
|
Cabinet
|
Premium grade Russia birch plywood
|
|
|
Front
|
Coated steel grill, acoustically neutral 3D fabric
|
|
|
Rigging Components
|
High grade steel with anti-corrosion coating
|
|
|
Finish
|
Dark grey brown
|
|
|
IP Rating
|
IP55
|
|
| The Difference between KA10 Wide and KA10 Focus |
| 1.Coverage angle sets array width: When the same number of cabinets are flown, Wide’s 30° gives broader horizontal coverage, while Focus’ 10° concentrates energy on-axis and reaches farther. |
| 2.SPL difference: The narrower horn lets Focus stack more axial acoustic energy for the same drive voltage, so its peak SPL is 3 dB higher than Wide. |
| 3.Throw distance: Focus is good for high-SPL throws up to ~35 m, whereas Wide is chosen for medium-distance applications that need wide horizontal coverage. |
| KA15 WIDE | KA15 FOCUS |
 |
 |
| KA10 FEATURE |
| 4 horizontal steer patterns cover every seat |
| Bass-reflex & waveguide boost lows, focus highs |
| Snap 2-point rig: fly, stack, pole mount in seconds |
| Tour-grade birch/IP55, gig-ready outdoors |
| 137 dB, 67 Hz–20 kHz, all from a 20kg box (KA15 WIDE) |
| 140 dB, 66 Hz–20 kHz, all from a 22kg box (KA15 FOCUS) |

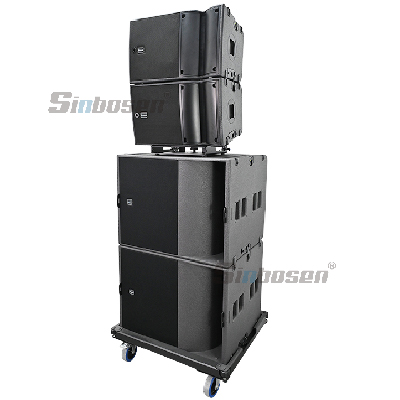

| Can be paired with KA21 21-inch subwoofer |

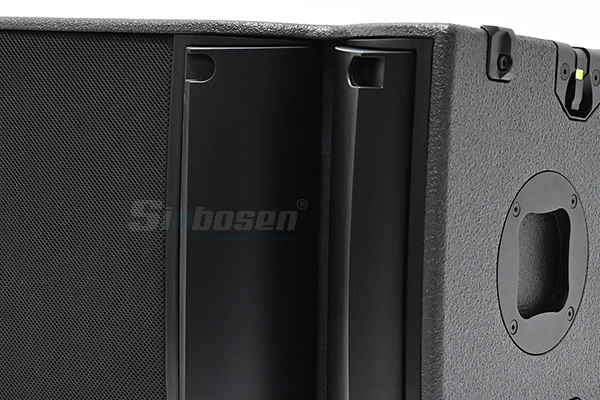

| Adjustable Fins | |

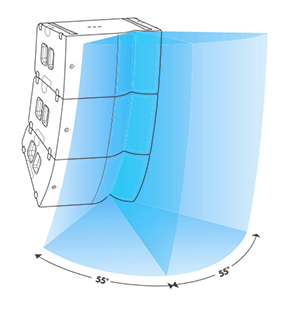

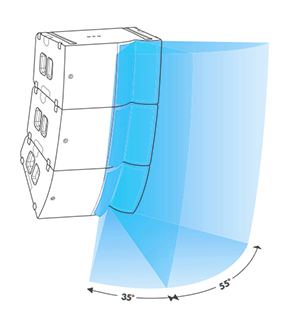

| KA10 Focus and KA10 Wide feature Adjustable Fins to adjust the waveguide directivity to one of four settings: 110° / 70° symmetric or 90° asymmetric (35°/55° or 55°/35°). |  |
| Within a line source, combine KA10 Focus and KA10 Wide with custom directivity settings to improve SPL mapping and throw capability. |
| 70° setting | 90° setting | 90° setting |
 |
 |
 |

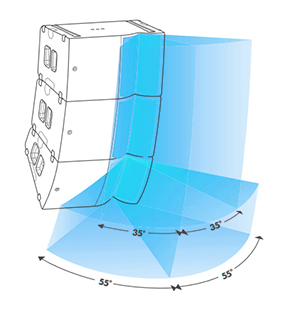

| 90° setting | 110° setting | Mixed setting |
 |
 |
 |
| OPTIONAL ACCESSORIES | |

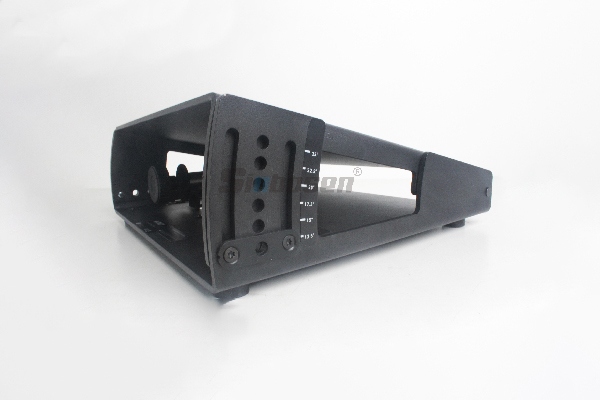

| ①KA10-TILT （use with KA21 Subwoofer） | |
 |
 |

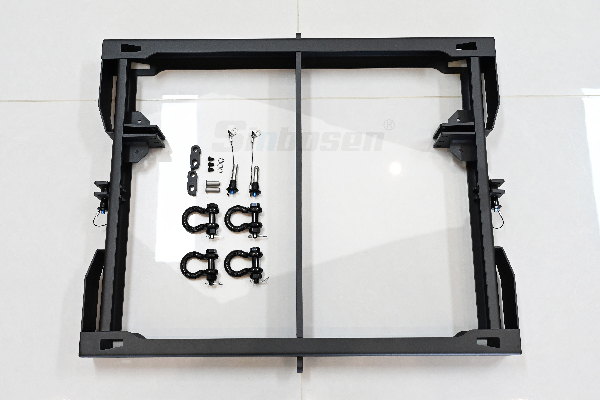

| ①KA10-BUMP （for KA10 Line-Array or hybrid KA15/KA10 rigs） | |
 |
 |
