Amplifier For Subwoofer

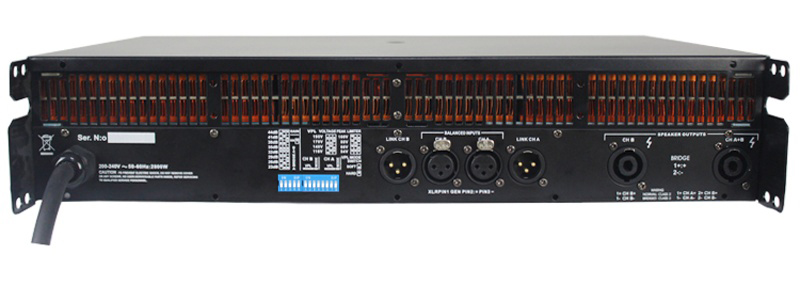

2 Channel Amp 3000 Watt Power Karaoke Amplifier For Best Stereo Line Array Speakers
Item No.: DS-9K
Model: DS-9K
8Ω Stereo Power (RMS): 1,600W X 2CH
4Ω Stereo Power (RMS): 3,000W X 2CH
Certification: CE, ROHS
Warranty: 3 Years
Special service: OEM service offered
8Ω Stereo Power (RMS): 1,600W X 2CH
4Ω Stereo Power (RMS): 3,000W X 2CH
Certification: CE, ROHS
Warranty: 3 Years
Special service: OEM service offered
Description
| DS-7K | DS-9K | DS-14K | DS-6Q | DS-10Q | DS-20Q | DS-22Q | |
| 8 ohm Stereo Power (RMS) | 1450WX2 | 1600WX2 | 2400WX2 | 625WX4 | 1350WX4 | 2200WX4 | 2500WX4 |
| 4 ohm Stereo Power (RMS) | 2800WX2 | 3000WX2 | 4400WX2 | 1250WX4 | 2100WX4 | 4000WX4 | 4650WX4 |
| 8 ohm Bridged Power (RMS) | 5600W | 6000W | 8800W | 2500WX2 | 4200WX2 | 8000WX2 | 9300WX2 |
| 4 ohm Bridged Power (RMS) | 7000W | 9000W | 14000W | 3000WX2 | 5000WX2 | 9000WX2 | 15000WX2 |
| Frequency Response(+o/-0.3dB,1W/8Ω)： | 20 Hz - 34 kHz | ||||||
| THD 20 Hz - 20 kHz for 1W: | <0.1% | ||||||
| Signal-to-Noise Ratio: | >112 dBA | ||||||
| Channel separation (Crosstalk) at 1 kHz ： | >70 dB | ||||||
| Input Connectors (per channel)： | 3 pin XLR, electronically balanced | ||||||
| Output Connectors (per channel)： | Binding Posts 2-pole | ||||||
| Class： | TD | ||||||
| TourClass Protection： | ACL, IGM, AutoRamp, short circuit, DC voltage, turn on/off transient, current inrush, sub/ultrasonic input | ||||||
| Operating voltage, 220V / 110V nominal： | 180-240 V / 90-130 V selectable | ||||||
| Voltage Gain(dB)： | 23, 26, 29, 32, 35, 38, 41, 44 dB selectable | ||||||
| Input impedance： | 20 kOhm | ||||||
| Level adjustment (per ch.)： | Front panel potentiometer, 31 positions detented from -inf to 0 dB | ||||||
DS-9K Feature:
•2 Channel Class TD Switching power amplifier.
•2 x 3,000 Watts into 4 Ohms,2 x 1,800 Watts into 8 Ohms
•Neutrik XLR*/speakon connectors.
•Use Original Siemens high-quality capacitor 3300uf 200V.
•Use Original ONSEMI type PNP power output transistor.
•Creat SUPER sound quality,good for line array speakers
•High quality fans from TaiWan.
•Extended heatsink board.
•Separately controllable on Gain.
•Scalable Voltage Peak Limiter (VPL).
•Bridge-mode operation for Touring Applications.
•Comprehensive protection scheme.
•2 Channel Class TD Switching power amplifier.
•2 x 3,000 Watts into 4 Ohms,2 x 1,800 Watts into 8 Ohms
•Neutrik XLR*/speakon connectors.
•Use Original Siemens high-quality capacitor 3300uf 200V.
•Use Original ONSEMI type PNP power output transistor.
•Creat SUPER sound quality,good for line array speakers
•High quality fans from TaiWan.
•Extended heatsink board.
•Separately controllable on Gain.
•Scalable Voltage Peak Limiter (VPL).
•Bridge-mode operation for Touring Applications.
•Comprehensive protection scheme.
 |
 |
 |
 |
 |
