2 Channel Amp 3000 Watt Power Karaoke Amplifier For Best Stereo Line Array Speakers
Amplifier For Subwoofer

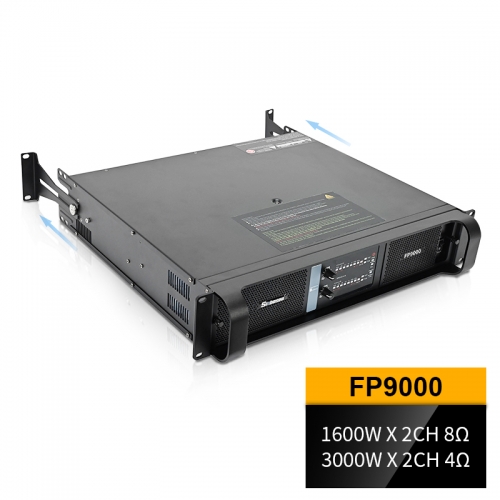

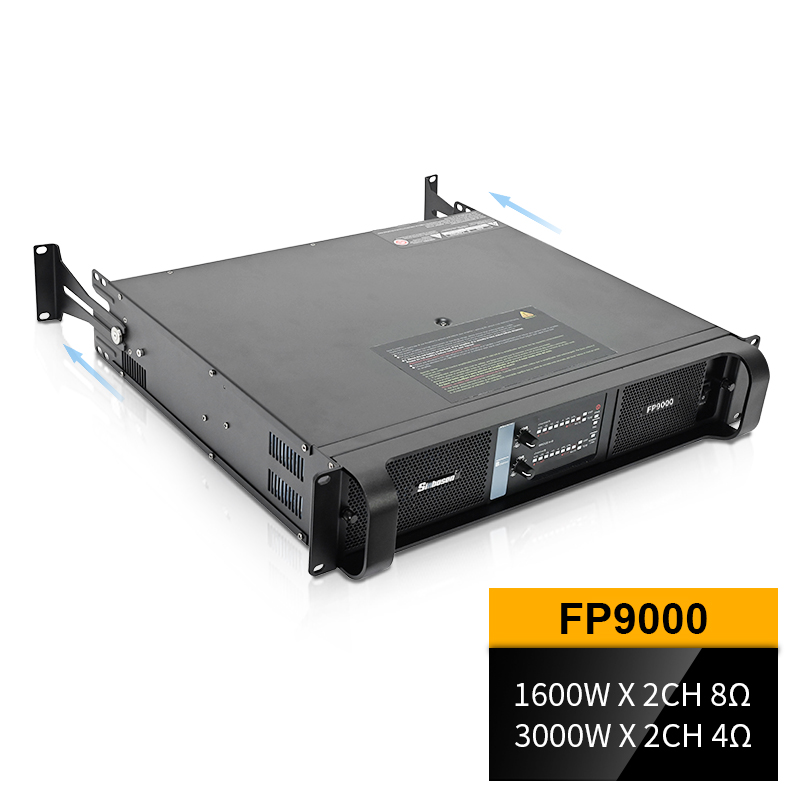

2 Channel Amp 3000 Watt Power Karaoke Amplifier For Best Stereo Line Array Speakers

Item No.: DS-9K
Model: DS-9K
8Ω Stereo Power (RMS): 1,600W X 2CH
4Ω Stereo Power (RMS): 3,000W X 2CH
Certification: CE, ROHS
Warranty: 3 Years
Special service: OEM service offered
Sinbosen Audio DS Series Amplifier
  DS-7K DS-9K DS-14K DS-6Q DS-10Q DS-20Q DS-22Q
8 ohm Stereo Power  (RMS) 1450WX2 1600WX2 2400WX2 625WX4 1350WX4 2200WX4 2500WX4
4 ohm Stereo Power  (RMS) 2800WX2 3000WX2 4400WX2 1250WX4 2100WX4 4000WX4 4650WX4
8 ohm Bridged Power (RMS) 5600W 6000W 8800W 2500WX2 4200WX2 8000WX2 9300WX2
4 ohm Bridged Power (RMS) 7000W 9000W 14000W 3000WX2 5000WX2 9000WX2 15000WX2
Frequency Response(+o/-0.3dB,1W/8Ω): 20 Hz - 34 kHz
THD 20 Hz - 20 kHz for 1W: <0.1%
Signal-to-Noise Ratio: >112 dBA
Channel separation (Crosstalk) at 1 kHz : >70 dB
Input Connectors (per channel): 3 pin XLR, electronically balanced
Output Connectors (per channel): Binding Posts 2-pole
Class: TD
TourClass Protection: ACL, IGM, AutoRamp, short circuit, DC voltage, turn on/off transient, current inrush, sub/ultrasonic input
Operating voltage, 220V / 110V nominal: 180-240 V / 90-130 V selectable
Voltage Gain(dB): 23, 26, 29, 32, 35, 38, 41, 44 dB selectable
Input impedance: 20 kOhm
Level adjustment (per ch.): Front panel potentiometer, 31 positions detented from -inf to 0 dB

DS-9K Feature:
2 Channel Class TD Switching power amplifier.
2 x 3,000 Watts into 4 Ohms,2 x 1,800 Watts into 8 Ohms

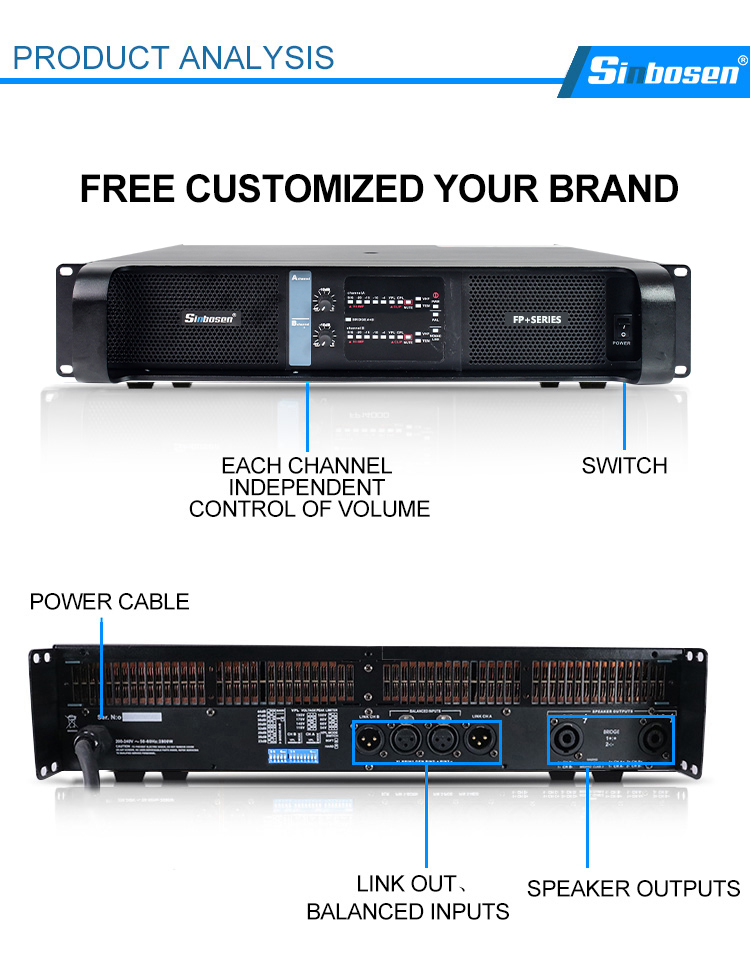

Neutrik XLR*/speakon connectors.

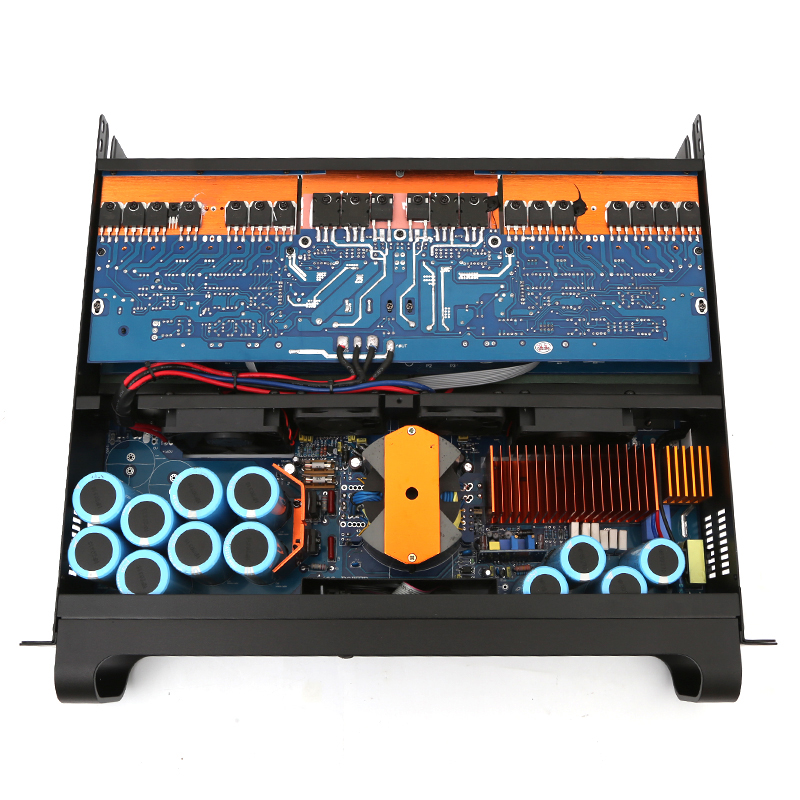

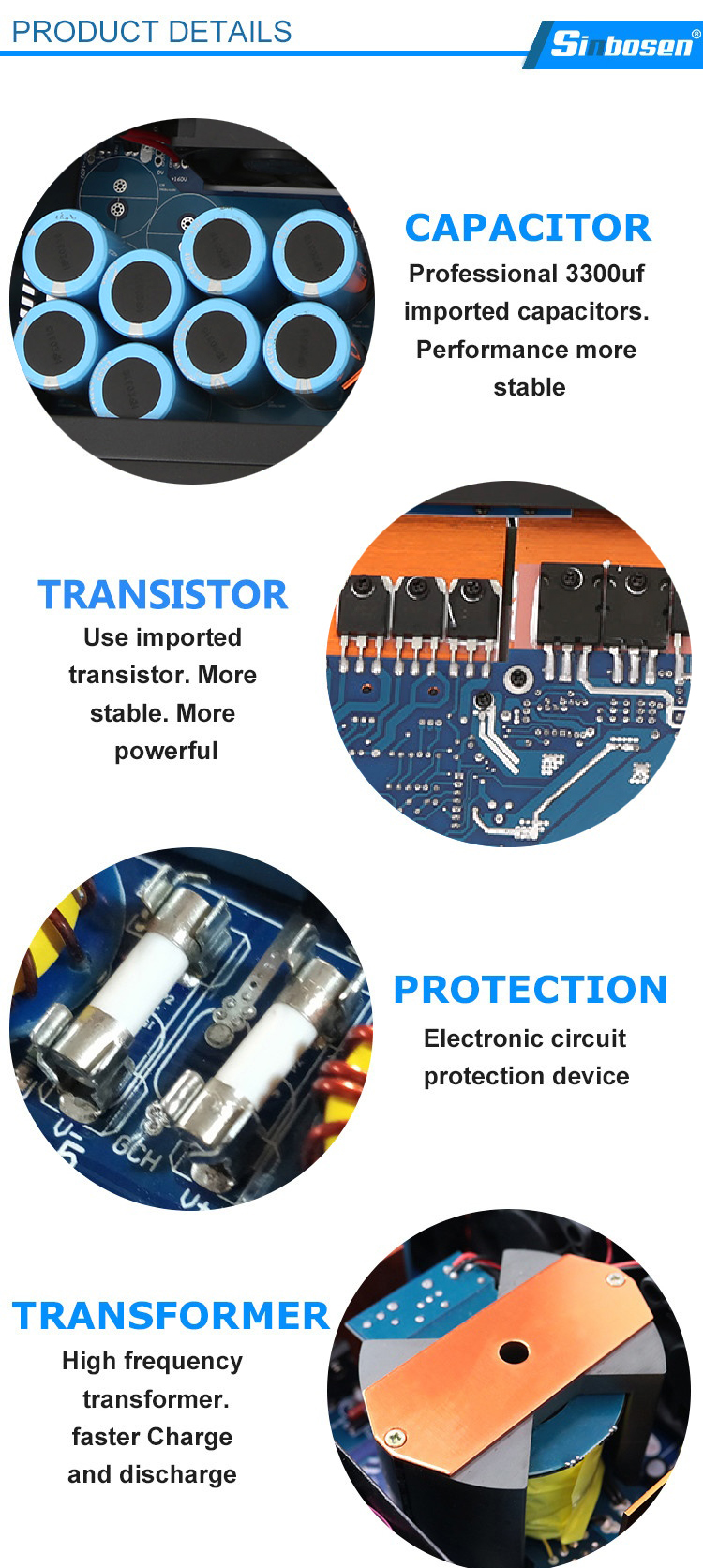

Use Original Siemens high-quality capacitor 3300uf 200V.
Use Original ONSEMI type PNP power output transistor.
Creat SUPER sound quality,good for line array speakers
High quality fans from TaiWan.
Extended heatsink board.
Separately controllable on Gain.
Scalable Voltage Peak Limiter (VPL).
Bridge-mode operation for Touring Applications.
Comprehensive protection scheme.
