Sinbosen professional soundaudio processor AD48 4 input 8 output digital speaker manage processor
AUDIO PROCESSOR

Sinbosen professional sound audio processor AD48 4 input 8 output digital speaker manage processor

Brand: Sinbosen
Model: AD48
Frequency Response: 20Hz-20kHz, +/-0.2dB
Power supply: 100V~240V
Channel: 4 input 8 ouput
Service: OEM Support
Warranty: 2 Years
Description


Item Specifications
Max Input Level 18dBu
Max Output Level 18dBu
Default Output Level 0dBu
THD+N <0.003%;1kHz@+4dBu
<0.0035%;1kHz@+10dBm
<0.0035%;20Hz~20kHz@+4dBu
Frequency Response 20Hz-20kHz, +/-0.2dB
In To Out dynamic range 110dB (Unrecorded right)
S/N -110dB (Unrecorded right)
ADC Dynamic Range CS5361 114dB
DAC Dynamic Range CS4382A 114dB
DSP 400Mhzfloating - point SHARC ADSP-21488
Sampling Frequency 48K
QE 24Bit
Storage 32
Control Mode 100M Ethernet
Language English
Noise Gate Yes
Feedback Yes
Signal Generator Yes
Pressure Limiter Independent 12 channel
Delay Output 1-4 218ms
Output 5-8 148ms
PEQ
Low Shelf
High Shelf
Independent 16-band
High Pass/Low Pass
Bessel
Butterworth
Link-Riley
Independent 12 channel
-6dB/oct
-12dB/oct
-18dB/oct
-24dB/oct
-36dB/oct
-48dB/oct

Audio Function: Gain, Gate, Xover, PEQ, Delay, Matrix, Limiter, All Mute, Setup, Copy, Save, Rec all

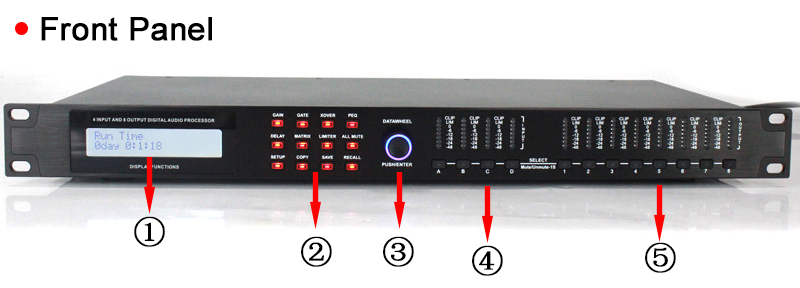

①LCD Screen
ARM version
Control IP address
Location description
Custom properties
Electric running time
②Audio Function
Gain, Gate, Xover, PEQ, Delay, Matrix, Limiter, All Mute, Setup, Copy, Save, Recall
③DataWheel
Data alignment
④Input Level Indicator Light
Above is input signal indicator light. When the input signal exceeds  - 40dBu, the signal indicator light is illuminated, indicating that the audio signal is input from the corresponding channel. Below is auxiliary button and mute switch.
⑤Output Level Indicator Light
Above is output signal indicator light. When the output signal exceeds -40dBu, the signal indicator light is illuminated, indicating that the audio signal is output from the corresponding channel. Below is auxiliary button and mute switch.

①Power Switch
②AC In
Support 100V~240V AC voltage, please use the standard power cable, use power outlet with grounding.
③RS-232 Interface
Use to connect the third - party central control system.
④Ethernet Interface
Connect to switch using standard 5 Ethernet networks, also can connect directly to laptop.
⑤Audio Input Interface: Channel 1~4
Standard XLRF input, balance audio input interface.
⑥Audio Output Interface: Channel 1~8
Standard XLRM output, balanced audio output interface.

Software Running Environment
Operating system request: windows XP、Windows 7 32Bit 、windows 7 64Bit
Storage space occupation: 50Mb
Network environment: 100m LAN or wireless router
