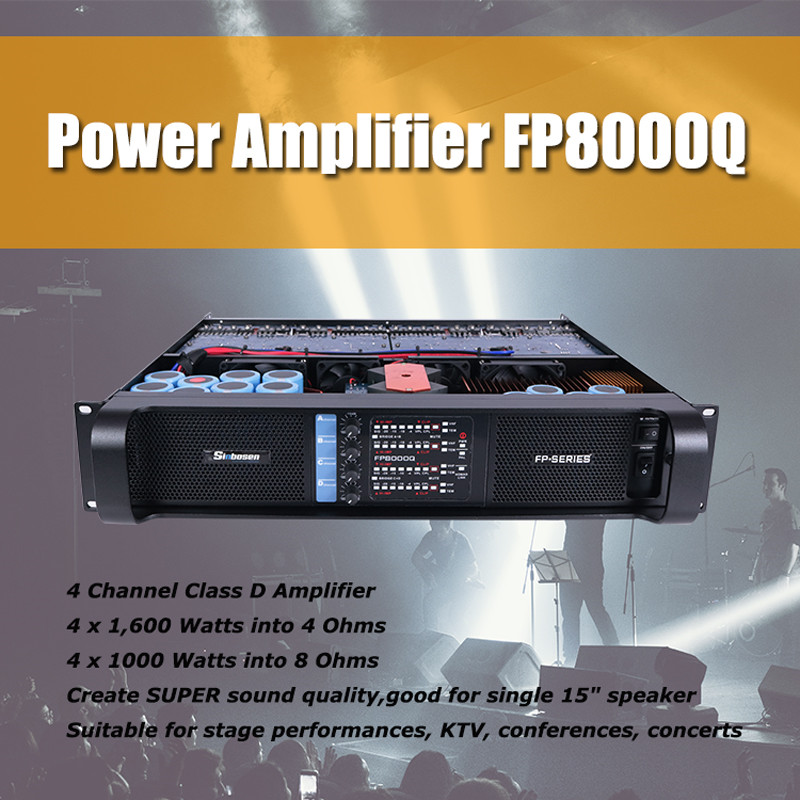

Sinbosen 2021 Hot Power Amplifier 1000 Watt FP8000Q Pa System Professional Audio Amplifier
Amplifier For Line Array Speaker

Sinbosen 2021 Hot Power Amplifier 1000 Watt FP8000Q Pa System Professional Audio Amplifier

Item No.: FP8000Q
Model: FP8000Q
Channel: 4 channel power amplifier
Output Power:
8Ω Stereo Power (RMS): 1,000W X 4CH
4Ω Stereo Power (RMS): 1,600W X 4CH
Class: TD
Certification: CE, ROHS, TUV
Warranty: 3 Years
Special service: OEM service offered
Description
Sinbosen Audio FP Series Amplifier
  FP8000Q FP9000 FP14000 FP6000Q FP7000 FP20000Q FP22000Q
8 ohm Stereo Power  (RMS) 1000WX4 1800WX2 2400WX2 700WX4 1500WX2 2200WX4 2500WX4
4 ohm Stereo Power  (RMS) 1600WX4 3000WX2 4400WX2 1300WX4 2800WX2 4000WX4 4650WX4
8 ohm Bridged Power (RMS) 3200WX2 6000W 8800W 2500WX2 5600W 8000WX2 9300WX2
4 ohm Bridged Power (RMS) 3800WX2 9000W 14000W 3000WX2 7000W 9000WX2 15000WX2
Frequency Response(+o/-0.3dB,1W/8Ω): 20 Hz - 34 kHz
THD 20 Hz - 20 kHz for 1W: <0.1%
Signal-to-Noise Ratio: >112 dBA
Channel separation (Crosstalk) at 1 kHz : >70 dB

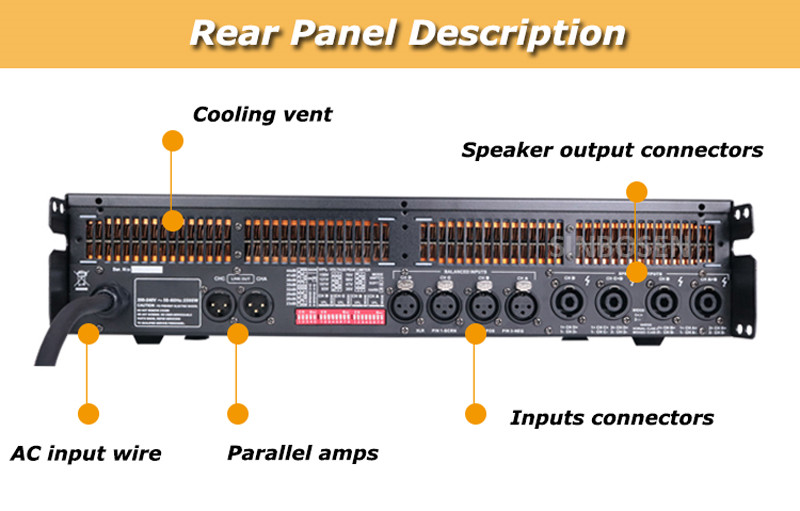

Input Connectors (per channel): 3 pin XLR, electronically balanced
Output Connectors (per channel): Binding Posts 2-pole
Class: TD
TourClass Protection: ACL, IGM, AutoRamp, short circuit, DC voltage, turn on/off transient, current inrush, sub/ultrasonic input
Operating voltage, 220V / 110V nominal: 180-240 V / 90-130 V selectable
Voltage Gain(dB): 23, 26, 29, 32, 35, 38, 41, 44 dB selectable
Input impedance: 20 kOhm
Level adjustment (per ch.): Front panel potentiometer, 31 positions detented from -inf to 0 dB





►4 Channel Class TD Switching power amplifier.
►4*1600 Watts into 4Ohms,4*1000 Watts into 8Ohms.
►Creat SUPER sound quality,good for 15" speaker.
►Separately controllable on Gain
►Scalable Voltage Peak Limiter (VPL)
►Bridge-mode operation for Touring Applications
►Comprehensive protection scheme
►Extended heatsink to 69 mm.

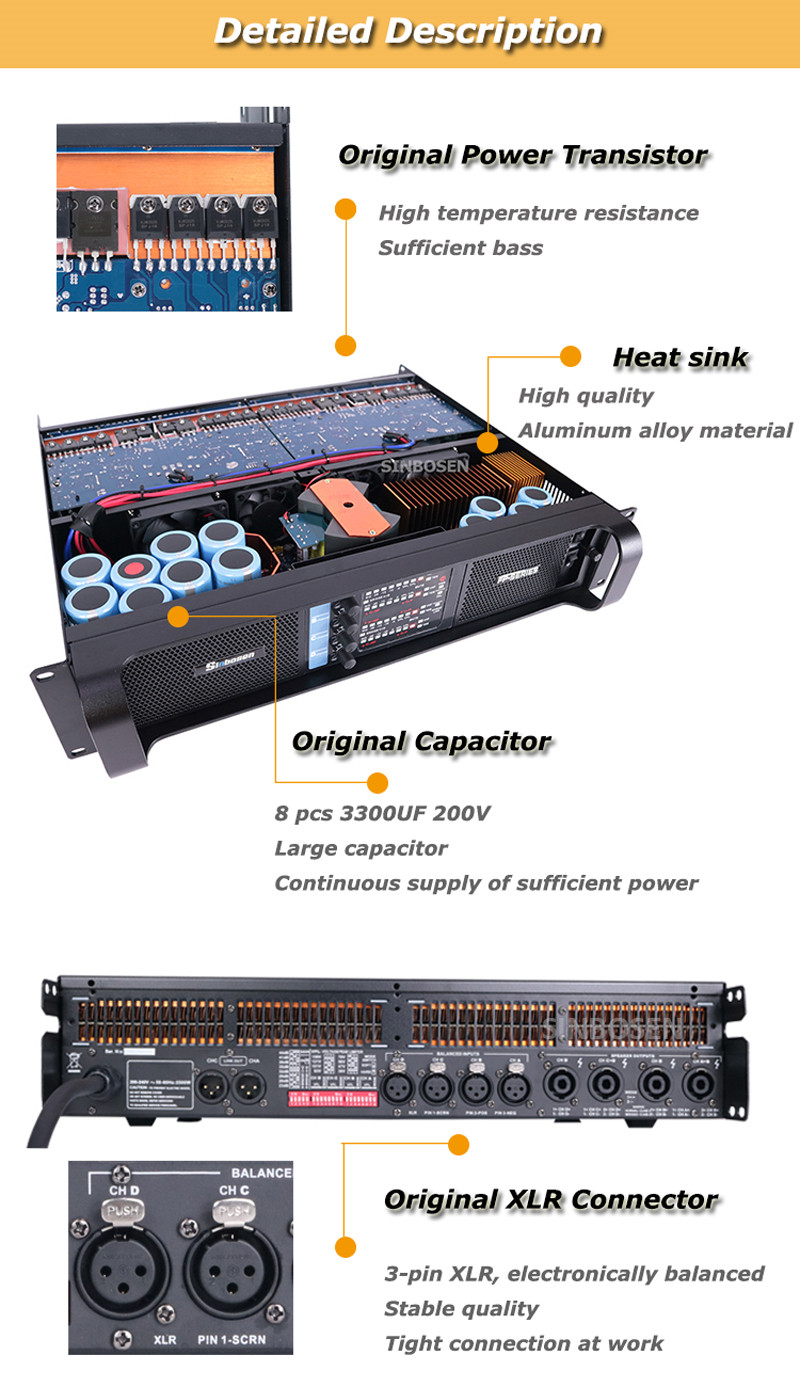

►Use Original Siemens high-quality capacitor 3300uf 200V.
►Use Original ONSEMI transistor.
►Neutrik XLR*/speakon connectors.
►High quality fans form TAIWAN.
