Pa system 12 inch sound audio loudspeaker 15 inch subwoofer set
BN-30 Drivers: 2 × 15"
|
TN-24 Loudspeaker
|
|
|
Drivers
|
LF: 2 × 12"
|
|
HF: 1 × 1.4" exit with 3" diaphragm
|
|
|
Frequency range
|
65-18000 Hz
|
|
Power capacity program / peak
|
1400 / 2400 W (bi-amp LF), 220 / 400 W (bi-amp HF)
|
|
1400 / 2400 W (passive)
|
|
|
Impedance
|
4 Ω (bi-amp LF), 8 Ω (bi-amp HF)
|
|
4 Ω (passive)
|
|
|
Coverage (h × v)
|
60° × 40°or 90° × 50° HF-horn, exchangeable, rotatable
|
|
Sensitivity 1 W / 1 m
|
107 dB (bi-amp LF), 112 dB (bi-amp HF)
|
|
110 dB (passive)
|
|
|
SPLmax / 1 m
|
143 dB
|
|
Connection
|
NL4 1± HF / 2± LF (bi-amp)
|
|
NL4 1± (passive)
|
|
|
Dimensions (H × W × D)
|
706 × 440 × 440 mm（27.8 × 17.32 × 17.32 in）
|
|
Weight
|
33 kg
|
|
Finish
|
Anti-corrosion paint
|
|
BN-30 Subwoofer
|
|
|
Drivers
|
2 × 15"
|
|
Frequency range
|
35 – 200 Hz
|
|
Power capacity program / peak
|
2000 / 4000 W
|
|
Impedance
|
8 Ω
|
|
Coverage
|
omni
|
|
Sensitivity 1W / 1 m
|
97 dB
|
|
SPLmax / 1 m
|
133 dB
|
|
Connection
|
NL4 2±
|
|
Dimensions (H × W × D)
|
706 × 446 × 800 mm [27.8 × 17.56 × 31.5 in]
|
|
Weight
|
38,7 kg [85 lbs]
|
|
Finish
|
Polyurea coating, black
|
|
Enclosure cabinet
|
First grade birch plywood
|
|
Front
|
Perforated, powder-coated steel
|
|
Flame retardant, hydrophobic and acoustically transparent 3D mesh fabric
|
|
TN-24/BN-30 SYSTEM FEATURE
①High SPL, Compact Size
Bracket/stack rigging, 143 dB peak, cabinet only 70 cm wide—handled by 2 people max.
②Full-Range,No Gaps
TN-24 already sounds full, with silky highs and dense mids; add BN-30 for deep, fast bass that starts and stops on command.
③Coaxial Horn, Steady Directivity
Dual 12" coax + 90° rotatable horn (60×40° or 90×50°) keeps far-field even and near-field polite.
④Low Distortion, Long Run
<10 % THD at 132 dB; IMD <4 % — hours of full-throttle show without audible fatigue.
⑤Road-Ready Rig

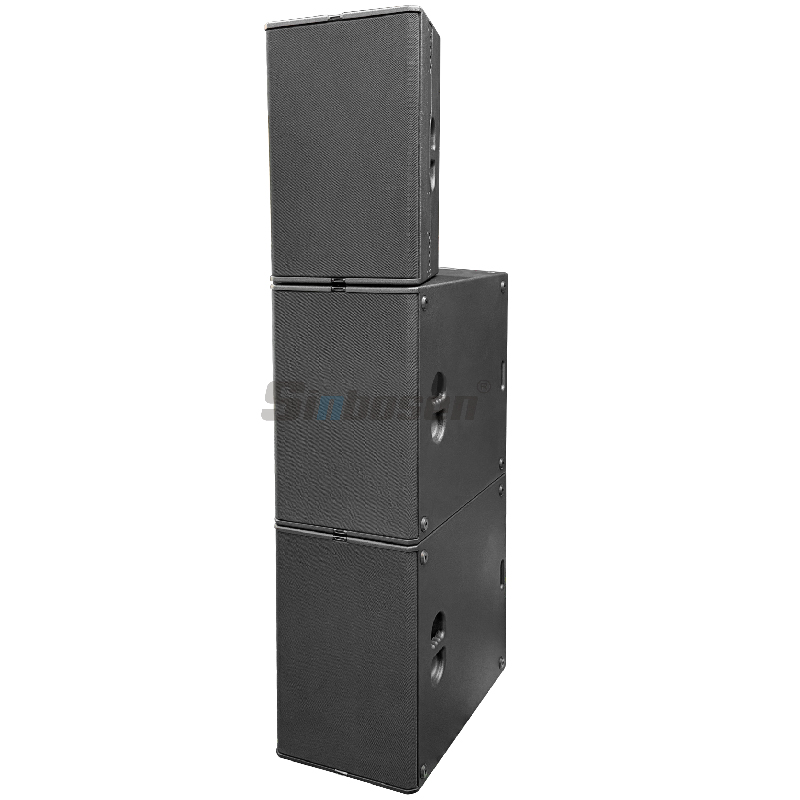

TN-24: 33 kg, 70 cm wide. BN-30 nests and stacks. Hang or stack the whole system in 10 minutes.
TN-24/TN-30 Mounting Examples
PA SYSTEM 1
compact enough for one person to unload

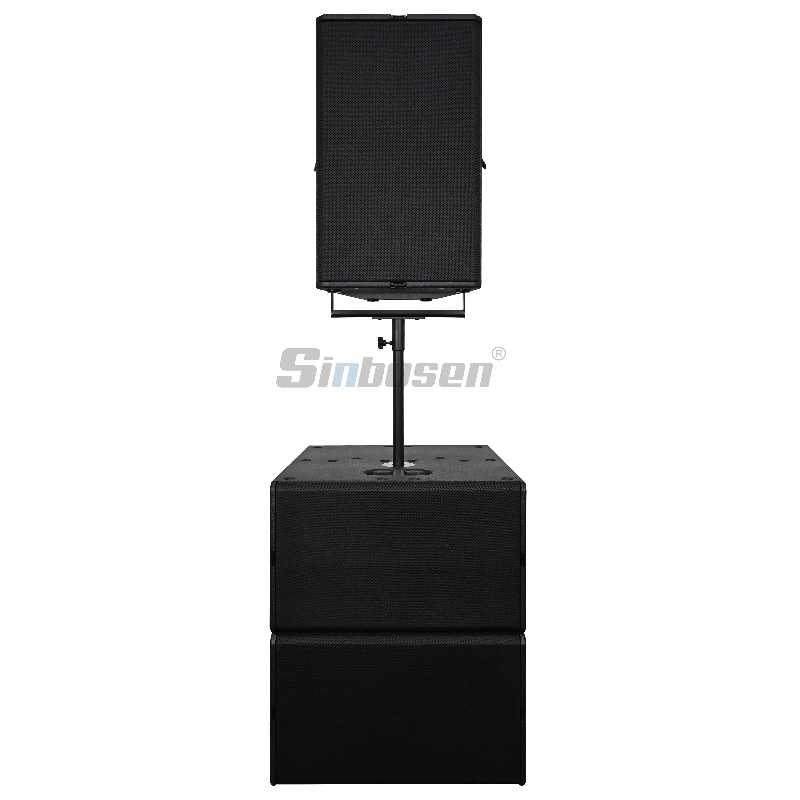

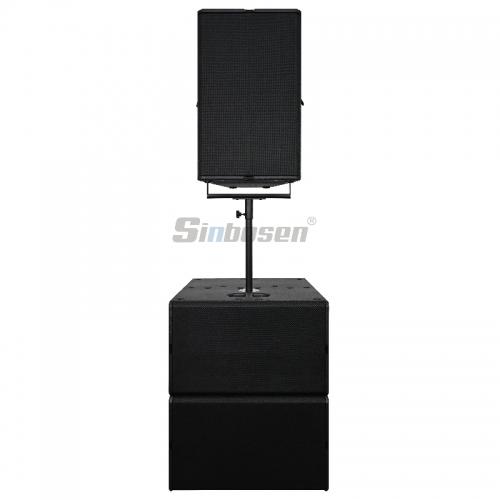

PA SYSTEM 2 / PA SYSTEM 3 / PA SYSTEM 4

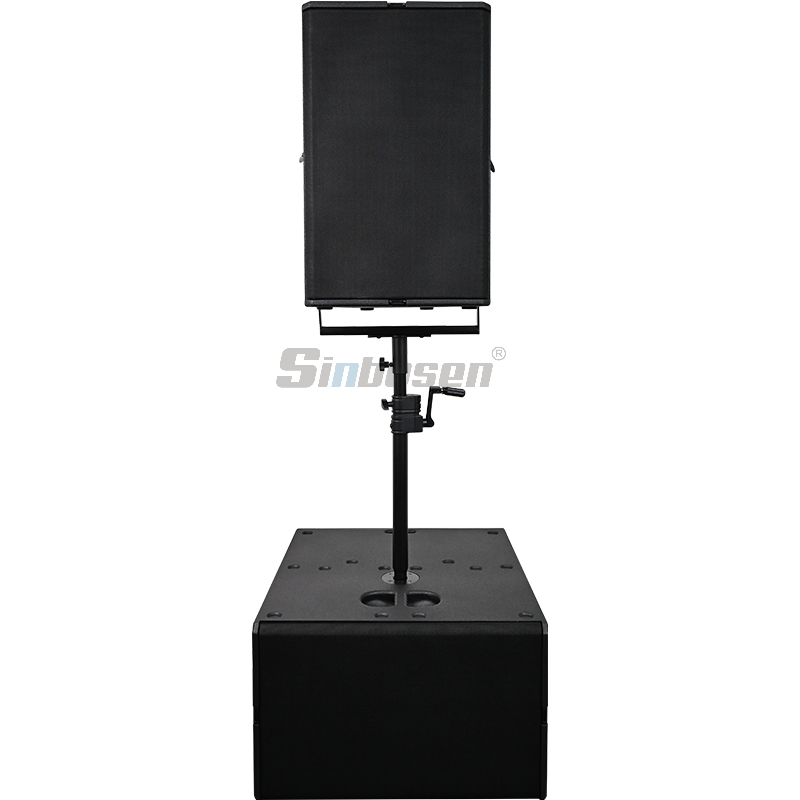

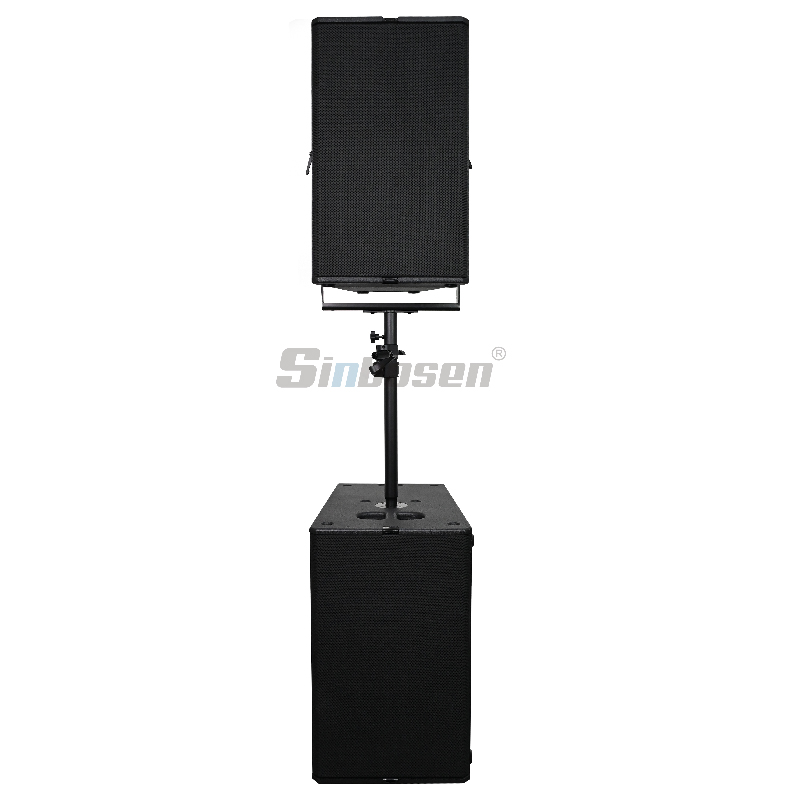

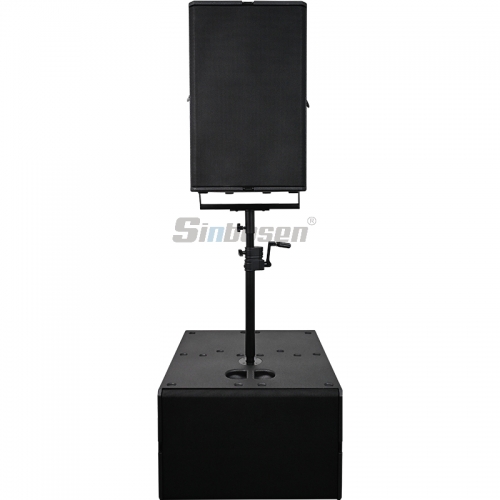

The swivel bracket allows the TN-24 to be mounted on a stand or attached to a truss
 |
 |
| PA SYSTEM 1 | PA SYSTEM 2 |
 |
 |
| PA SYSTEM 3 | PA SYSTEM 4 |
