Coaxial Speaker
Mini portable high end coaxial 5 inch speaker
Item No.: XT-05
Type: 2-way passive
Max SPL: 121 dB
Bandwidth: 95 Hz- 20 KHz
Transducers: LF : 1 x 5"；HF : 1 x 1"
Weight: 3.5 kg / 7.7 lb
Directivity: H: 110° ; V: 110°
Max SPL: 121 dB
Bandwidth: 95 Hz- 20 KHz
Transducers: LF : 1 x 5"；HF : 1 x 1"
Weight: 3.5 kg / 7.7 lb
Directivity: H: 110° ; V: 110°
Description
|
2 way 5 inch portable speaker
|
|
|
Usable bandwidth (-10 dB)
|
95 Hz – 20 kHz
|
|
Maximum SPL
|
121 dB
|
|
Nominal directivity (-6 dB)
|
110° axisymmetric
|
|
Transducers
|
LF: 1 × 5″ cone driver
|
|
HF: 1 × 1″ diaphragm compression driver
|
|
|
Acoustical load
|
Bass-reflex
|
|
Nominal impedance
|
16 Ω
|
|
Connectors
|
IN: 1 × 4-point speakON
|
|
LINK: 1 × 4-point speakON
|
|
|
IN/LINK: 2 × 2-point screw terminals
|
|
|
Rigging and handling
|

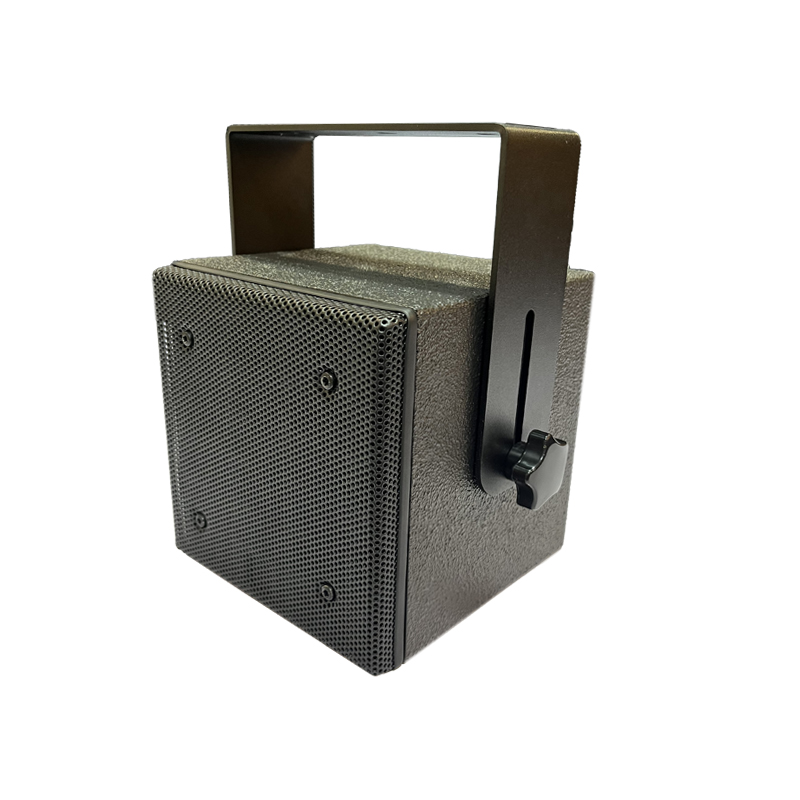

2 inserts for Adjustable U-bracket
|
|

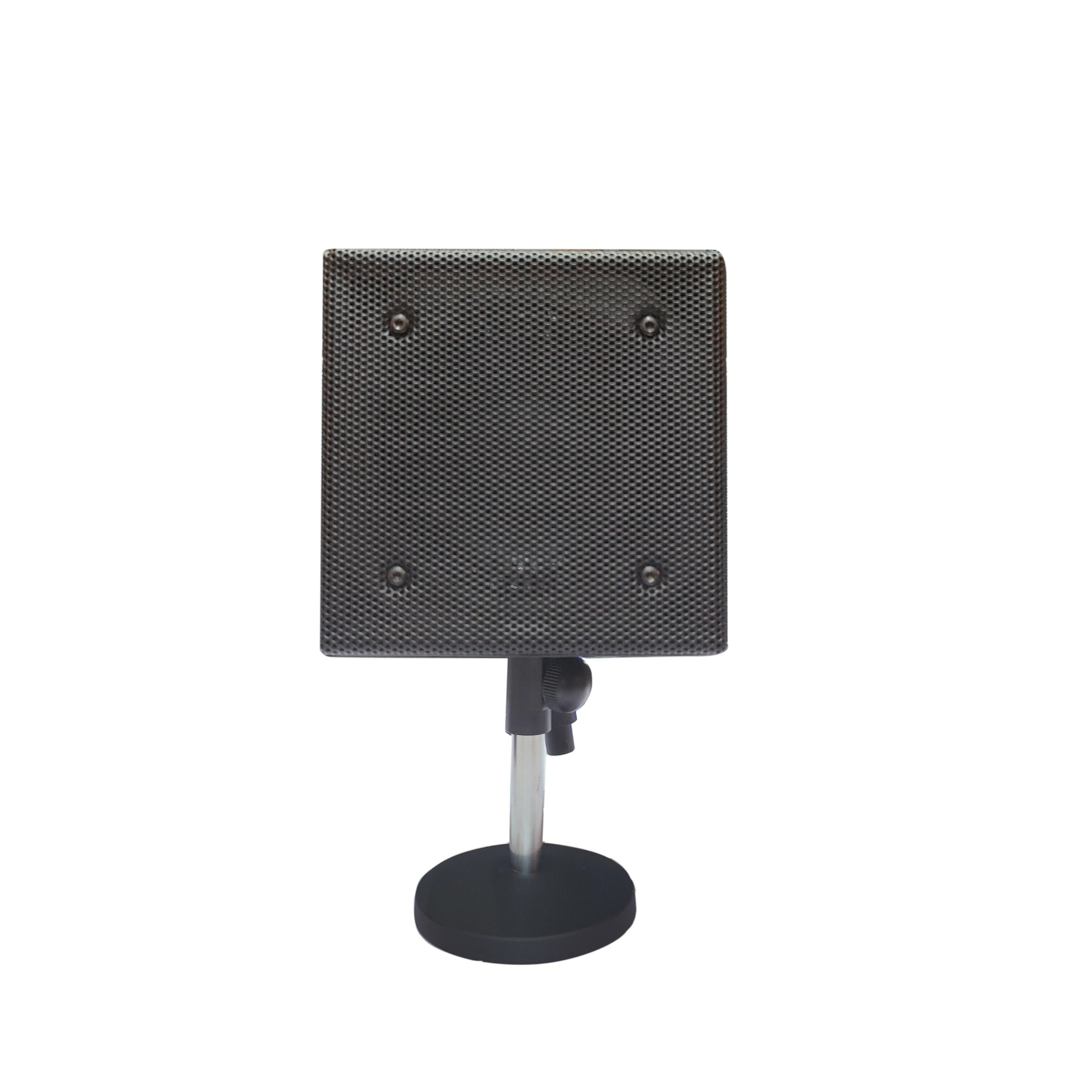

1 × 3/8″ insert for microphone stand
|
|
|
Weight (net)
|
3.5 kg / 7.7 lb
|
|
Cabinet
|
First grade plywood
|
|
Front
|
Steel with anti-corrosion coating
|
|
Finish
|
Dark grey brown
|
FEATURE
 |
Based on a two way passive design with a nominal impedance of 16ohms, the XT-05 mini speaker houses a 1" diaphragm compression driver and a coaxial 5" low frequency driver (bass reflex adjustment).Use First graded plywood to ensure the best possible sound quality and mechanical integrity.
|
DETAIL
 |
 |
 |
 |
MOUNTING WAY
 |
 |
Optional Flight Case Package

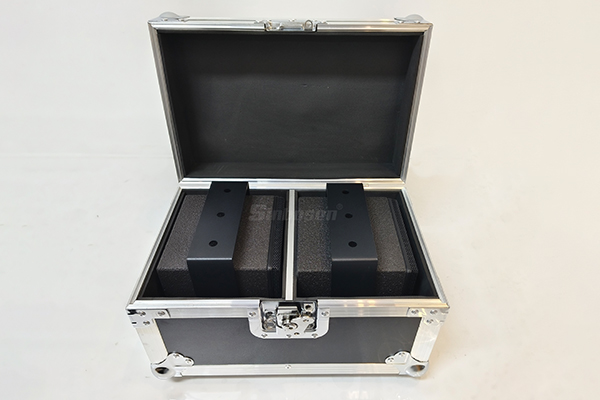

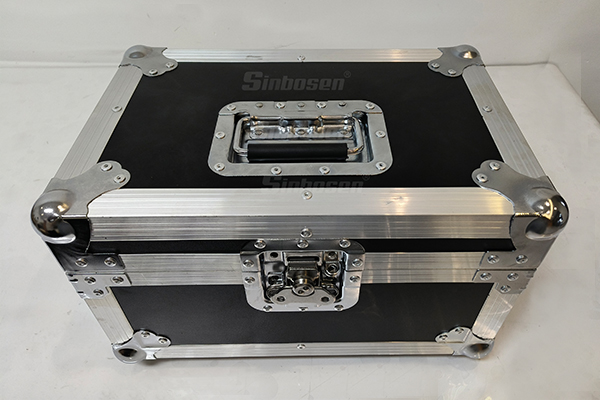

| ①Flight case for 2pcs XT-05 and 2pcs Bracket | |
 |
 |

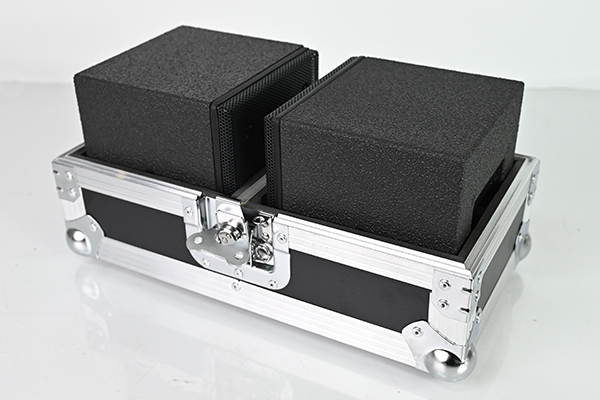

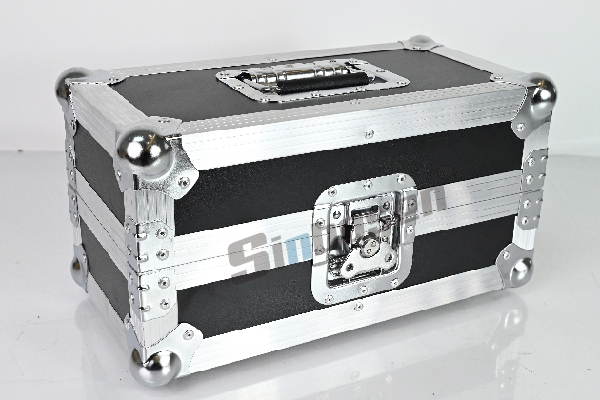

②Flight case for 2pcs XT-05 Loudspeaker |
|
 |
 |
