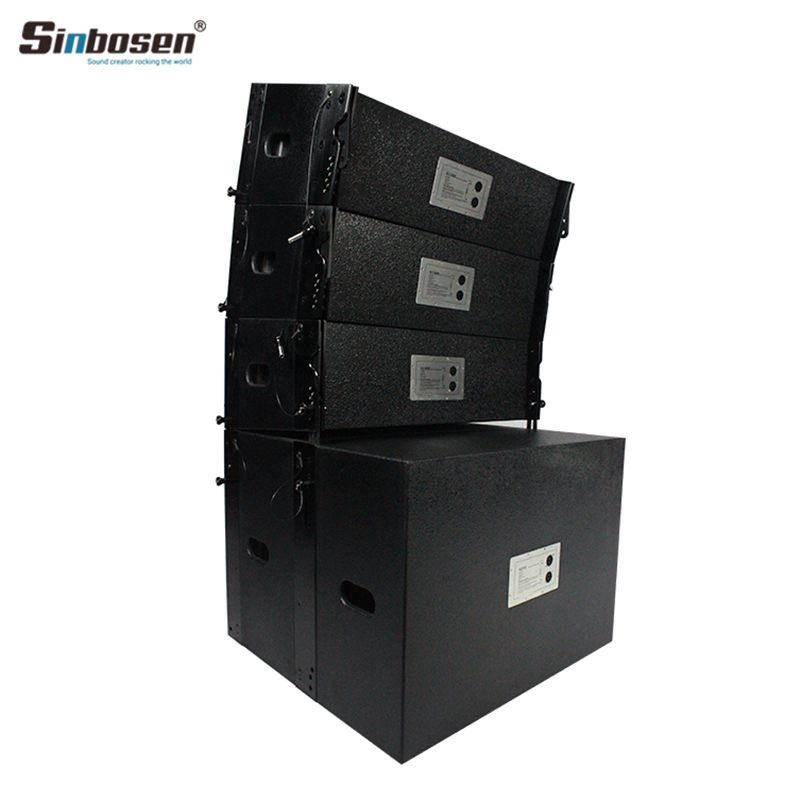

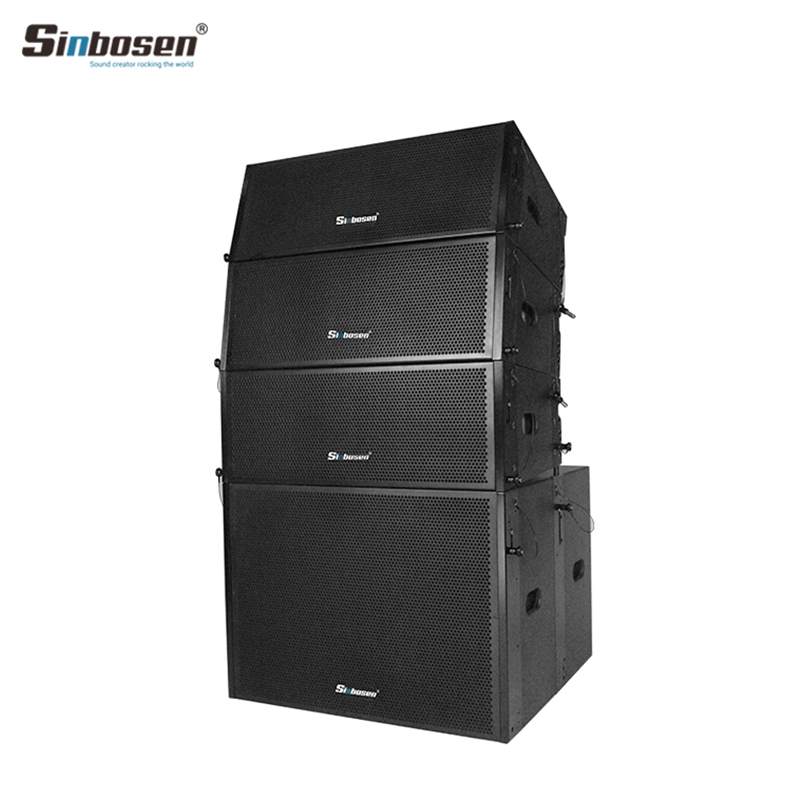

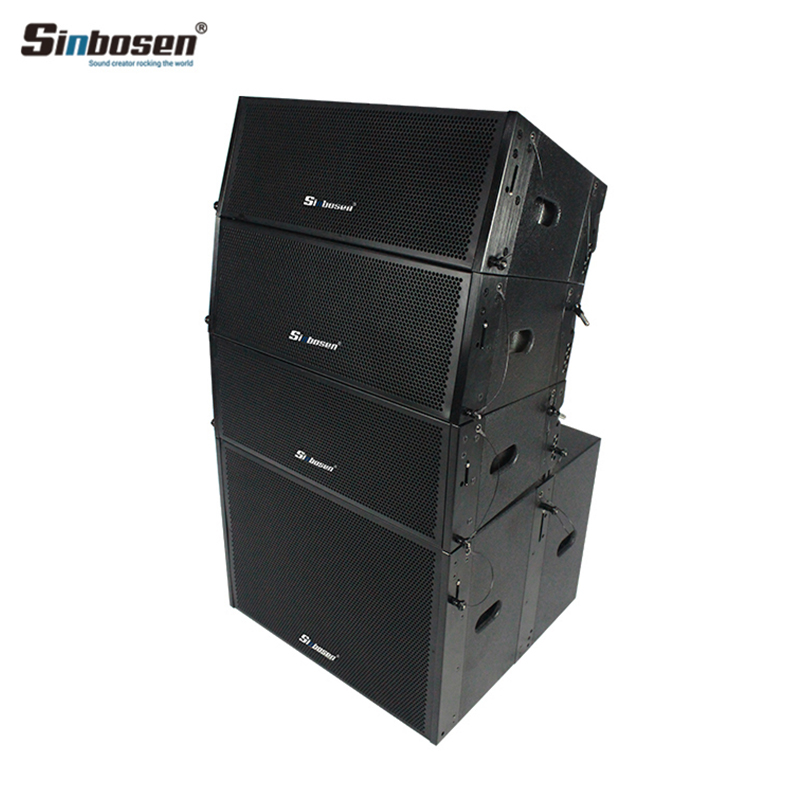

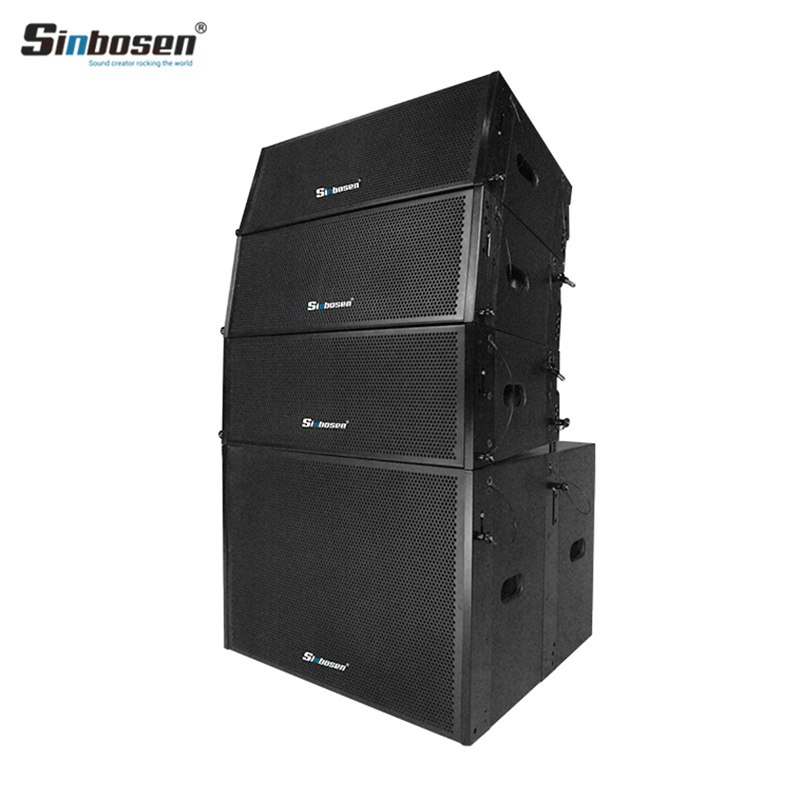

Sinbosen Professional Speaker Line Array System Sn2008 Double 8 Inch Line Array
LINE ARRAY SPEAKER

Sinbosen Professional Speaker Line Array System Sn2008 Double 8 Inch Line Array

Model NO:Sn2008
Brand : Sinbosen
Rated Power:350W
Peak Power:700W
Frequency Response:45Hz-18KHz
Sensitivity:101dB(1m/W)
Impedance:4Ω
Payment Terms:L/C, T/T, Western Union, Paypal, Money Gram
Description Product parameters Sinbosen Audio Factory Contact us

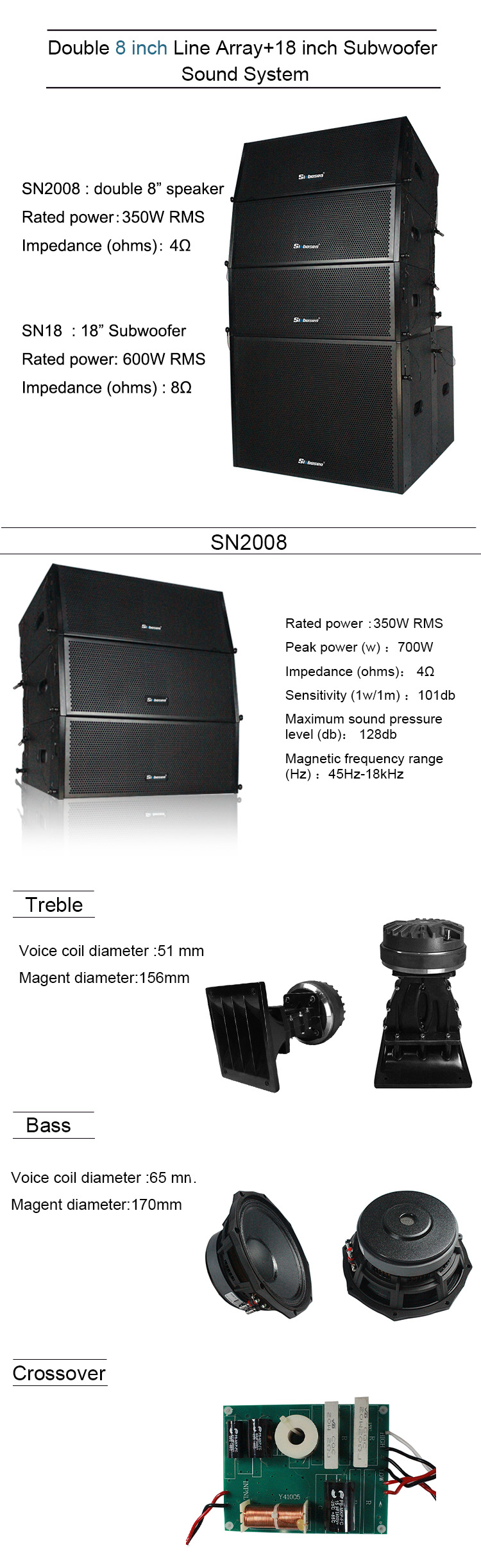

SN2008

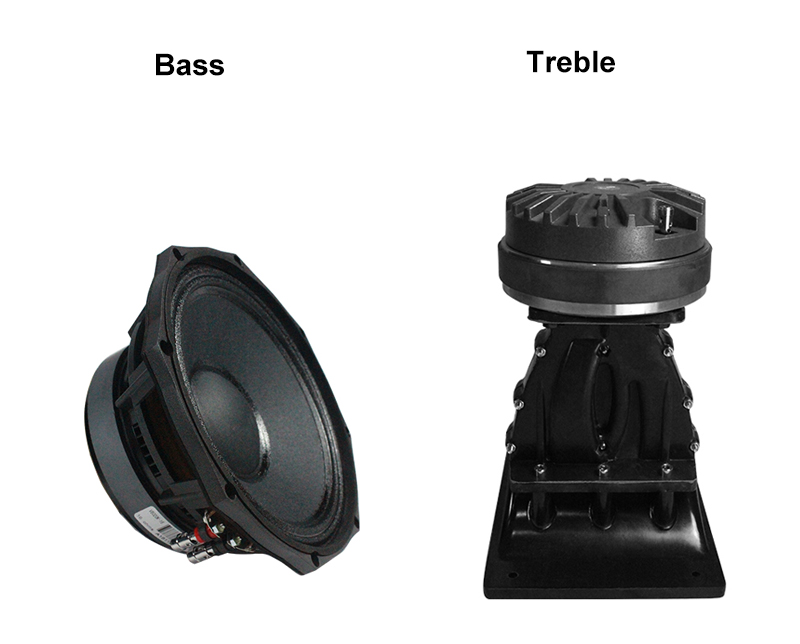

1pcs 2inch Treble 51cores 156magnetism
2pcs 10inch bass 65cores 170magnetism
Rated Power 350W
Peak Power 700W
Frequency response 45Hz-18KHz
Sensitivity 101dB(1m/w)
Impedance
Maximum Sound Pressure 128dB
Specification 70x40.5x26cm
Weight 31KG
Wood case 18mm plywood,galaxy black paint
Subwoofer  double 8 inch line array
Transport Package Strong Wooden Frame and Carton
Feature Support Strong Bass Sound
Activity Passive
Application Commercial, Home,Party, Stage, KTV, Professional Performance






KA208 SN110 SN2010 SN2012 FP20000Q KSM9 KSM9H















SN2008
1pcs 2inch Treble 51cores 156magnetism
2pcs 10inch bass 65cores 170magnetism
Rated Power 350W
Peak Power 700W
Frequency response 45Hz-18KHz
Sensitivity 101dB(1m/w)
Impedance
Maximum Sound Pressure 128dB
Specification 70x40.5x26cm
Weight 31KG
Wood case 18mm plywood,galaxy black paint
Subwoofer  double 8 inch line array
Transport Package Strong Wooden Frame and Carton
Feature Support Strong Bass Sound
Activity Passive
Application Commercial, Home,Party, Stage, KTV, Professional Performance
Address: 6th Floor, Building 7, Xiajijiao, Tinggang, Hongxing Village, Shimen Street, Baiyun District, Guangzhou, Guangdong, China
Welcome to visit our factory!







Power Amplifier Production Process
A power amplifier, which consists of thousands of parts, the quality of the parts, and the details of the production process,
determines whether it is an excellent power amplifier. Our mission is to carefully manufacture each amplifier
so that it fits perfectly with every performance of the customer.


1. COMPONENTS TEST
Component quality inspection: It can determine the quality of resistors, capacitors, inductors, transformer, and transistors.

2. WELDING
The most important function of PCB soldering is to weld all the components together and let them play their roles. The solder joints and the protection component solder joints are not oxidized and dropped off.

3.COMPONENTS ASSEMBLY
In accordance with the specified technical requirements, workers join several parts into components carefully.


4. SEMI-FINISHED PRODUCT TEST  to ensure effective control of product quality.
4-1. Test amplifier board
4-2. Test output and input board
4-3. Test amplifier power supply board
4-4. Test amplifier indicator light


5. PRODUCT ASSEMBLY
Assemble the components according to the specified technical requirements, after debugging and inspection to make them to be qualified products.

6-1. FINISHED PRODUCT TEST
Completely inspect and test the finished product before packing. The oscilloscope can directly display the signal waveform and measure the instantaneous value of the signal.
6-2. Measure the operating voltage of the electronic circuit or component and compare it with the normal value to judge the fault.


7. AGING TEST
Aging test 8-10 hours before packing, ensure the quality of the product is qualified before packing.

8. FINISHED PRODUCT
Finish all the tests and waiting for clean up.

9. PACKING
Use a thick cardboard box, foam and carton protection corner to make transportation without problems.
