Professional digital processor DBX PA2 2 input 6 output audio processor
AUDIO PROCESSOR

Professional digital processor DBX PA2 2 input 6 output audio processor

Brand: Sinbosen
Model: dbx PA2
Frequency Response: 20 Hz-20 kHz, +0/- 0.5 dB
Operating Voltage:  100-240V
Channel: 2 input 6 ouput
Unit Weight:  2.4 kg
Service: OEM Support
Description


Professional digital processor DBX PA2 2 input 6 output audio processor

Specifcations


ANALOG INPUTS
Number of Inputs 2 line inputs, 1 RTA mic input
Connectors 2 female XLR line inputs, 1 female XLR RTA mic input
Type Electronically balanced/RF filtered
Impedance > 50 kΩ
Max Input Level (line inputs) > +20 dBu
CMRR > 45 dB
  RTA Mic Preamp Phantom Power   +15 VDC

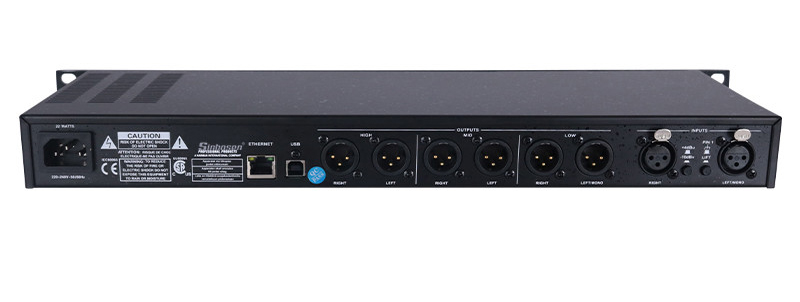

ANALOG OUTPUTS
Number of Outputs 6 line outputs
Connectors Male XLR
Type Electronically balanced, RF filtered
Impedance 120 Ω
Max Output Level +20 dBu
Alignment Delay Up to 10ms per output channel pair
A/D PERFORMANCE
A/D Converter 24-bit with dbx Type IV™ Conversion System
A/D Dynamic Range 112 dB A-weighted, 110 dB unweighted
Type IV Dynamic Range 123 dB with transient material, A-weighted, 22kHz BW;
121 dB with transient material, unweighted, 22kHz BW;
  115 dB typical with program material, A-weighted, 22kHz BW
D/A PERFORMANCE
D/A Converter 24-bit
D/A Dynamic Range 112 dB A-weighted, 110 dB unweighted
SYSTEM PERFORMANCE
Internal Processing Wordlength 32-bit floating point
Sample Rate 48 kHz
Dynamic Range 110 dB A-weighted
107 dB unweighted
THD+Noise 0.003% typical at +4 dBu, 1 kHz, 0 dB input gain
Frequency Response 20 Hz - 20 kHz, +0 /- 0.5 dB
Interchannel Crosstalk < -110 dB, -120 dB typical (input-to-output: < -100 dB)
Latency Input to output: 1.847 ms
POWER SUPPLY
Operating Voltage 100-120 VAC 50/60 Hz or 220-240 VAC 50/60 Hz
Power Consumption 22 Watts

DBX PA2 processor Features:

Stereo feedback suppressor 2×12 group fast tracking notch filter.
Dual 28-segment graphic equalizer.
Classic dbx compressor.
120A subharmonizer.
2×3, 2×4, 2×5, 2×6 crossover combination selection.
Stereo multi-parameter equalizer.
Stereo output limiter.
Speaker fine-tuning delay.
Pink noise generator.
Auto-EQ automatic room equalization compensation.
25 factory presets / 25 user settings program memory.
2 sets of inputs, 6 sets of outputs.

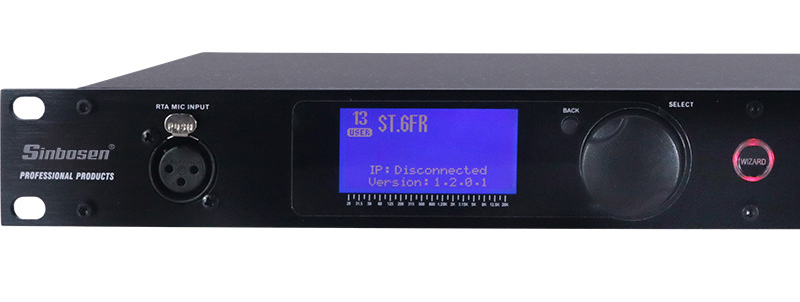

RTA-M real-time spectrum analysis microphone input is set on the panel with phantom power.
24-Bit A/D converter provides dynamic range greater than 110dB.
Dbx patent Type IVTMA/D conversion circuit.
Graphic LCD display.
