Sinbosen K4-1700 4 channels 3800 watts into 2 ohms professional 1u digital class d module amplifier
2 Ohms Stable Amplifier

Sinbosen K4-1700 4 channels 3800 watts into 2 ohms professional 1u digital class d module amplifier

Item No.: K4-1700
Model: K4-1700
Channel: 4 channel power amplifier
Feature: 1U/Digital Amp/4CH/Class D/For Full Range Speaker
Output Power:
8Ω Stereo Power (RMS): 1700WX4CH
4Ω Stereo Power (RMS): 2800WX4CH
2Ω Stereo Power (RMS): 3800WX4CH
Certificate: CE, ROHS
Description


1U Digital Amplifier K4-1700
Output Power 1 KHz, <0.05%THD 4 x 1700 Watts into 8 Ohms
4 x 2800 Watts into 4 Ohms
4 x 3800 Watts into 2 Ohms
Class Class D Power Amplifier
THD (20Hz-20kHz for 1W) <0.1%
THD (1kHz and 1 dB below clipping) <0.05
DSP Processor NO
Signal Noise Ration >106dB
Frequency Response(+/-0.1dB) 10Hz-34kHz
Damping coefficient >600
Impedance(balanced/unbalanced) 20KQ/10KQ
Gain (optional) 0.775V/1V/32dB

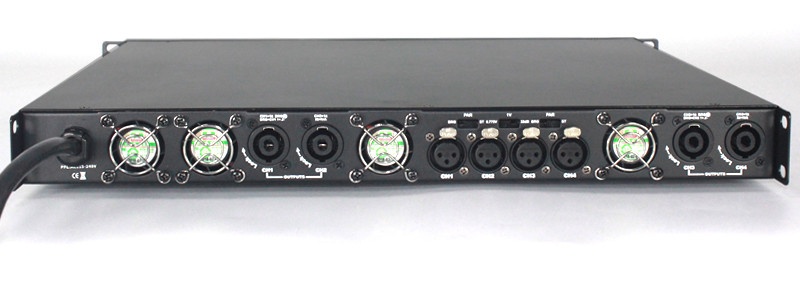

Output socket Spe akon Connectors
Input socket Combo XLR type, 3pin
Link socket XLR type,3pin male(NEUTRIK)
Protection   Short circuit, open dircuit, thermal, overload,DC,super audio protection
Power Requirement 90-265V~50Hz(PFC)
Size(WxHxD) 483x429x44mm
Weight(net) 10.5Kg

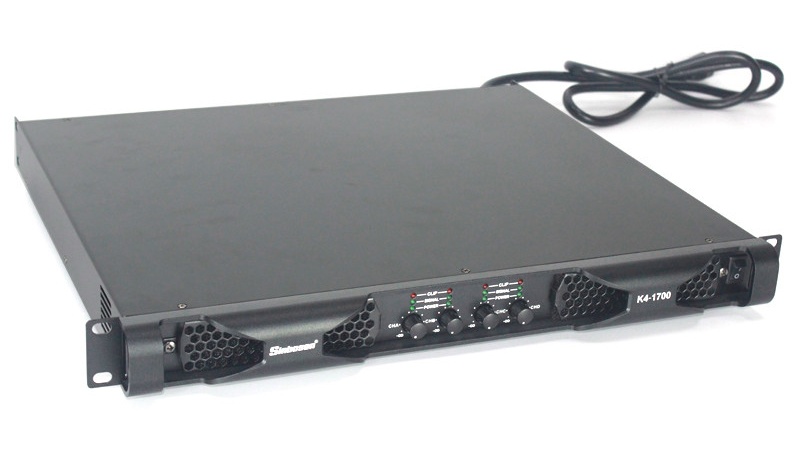

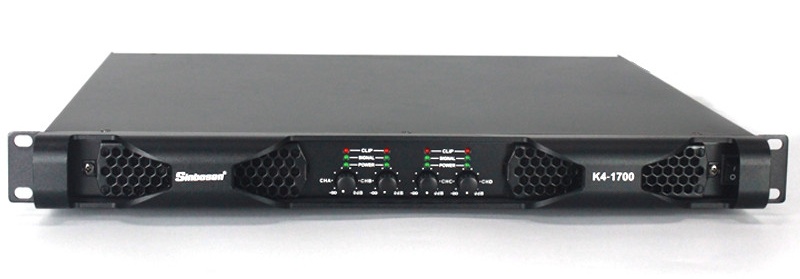

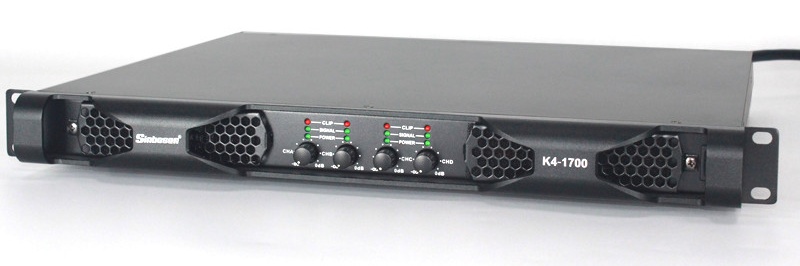

K4-1700 Digital Power Amplifier

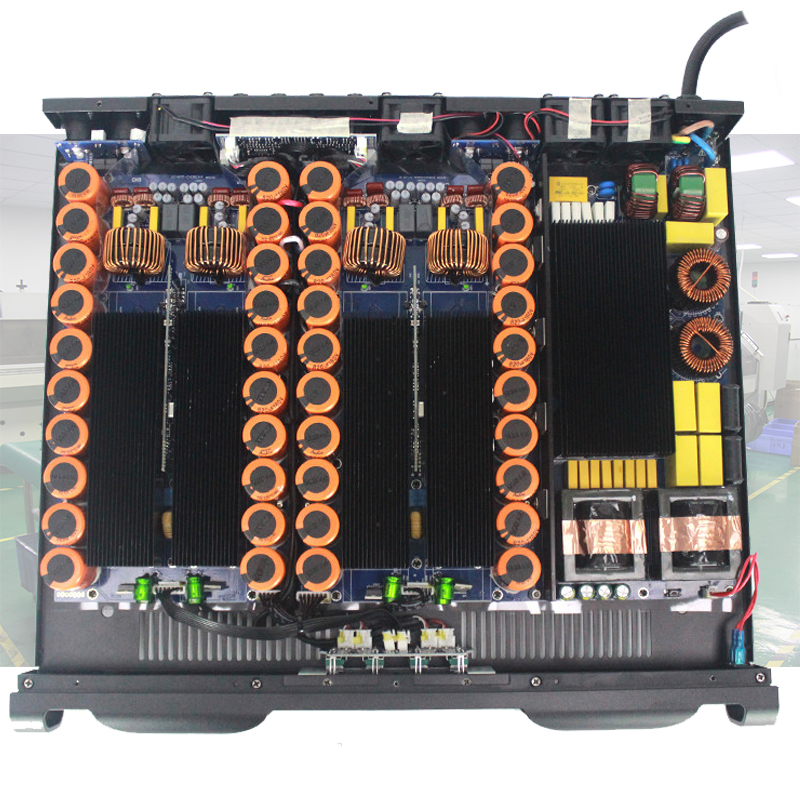

K4-1700 1U 4-channel power amplifier, small size, light weight, easy to install. The circuit uses a Class D power amplifier module, a reliable and efficient R-SMPS stabilized power supply system, which has extremely high efficiency and controllability, and also has extremely high power density, which can adjust the current waveform according to the AC voltage waveform. Wide voltage operation, adapt to the global scope, can carry higher power.

Digital Amplifier K4-1700 Feature:

1. Use ClassD power amplifier module. Unique peak clipping limiter and ripple reduction.
2. The perfect protection system effectively reduces the losses caused by improper use.
3. The perfect circuit design makes the bass strong and powerful, and the mid and high frequencies are transparent and clear.
4. 1U design, its light weight and very small space occupation rate.
5. It is widely used in large and medium-sized bars, banquet halls, and outdoor performances.
