DS-30Q Professional 4 channel pro high power sound audio power amplifier for 21 inch subwoofer
Amplifier For Subwoofer

DS-30Q Professional 4 channel pro high power sound audio power amplifier for 21 inch subwoofer

Item No.: DS-30Q
Model: DS-30Q
8Ω Stereo Power (RMS): 2,500W X 4CH
4Ω Stereo Power (RMS): 4,650W X 4CH
Certification: CE, ROHS
Warranty: 3 Years
Special service: OEM service offered
Description

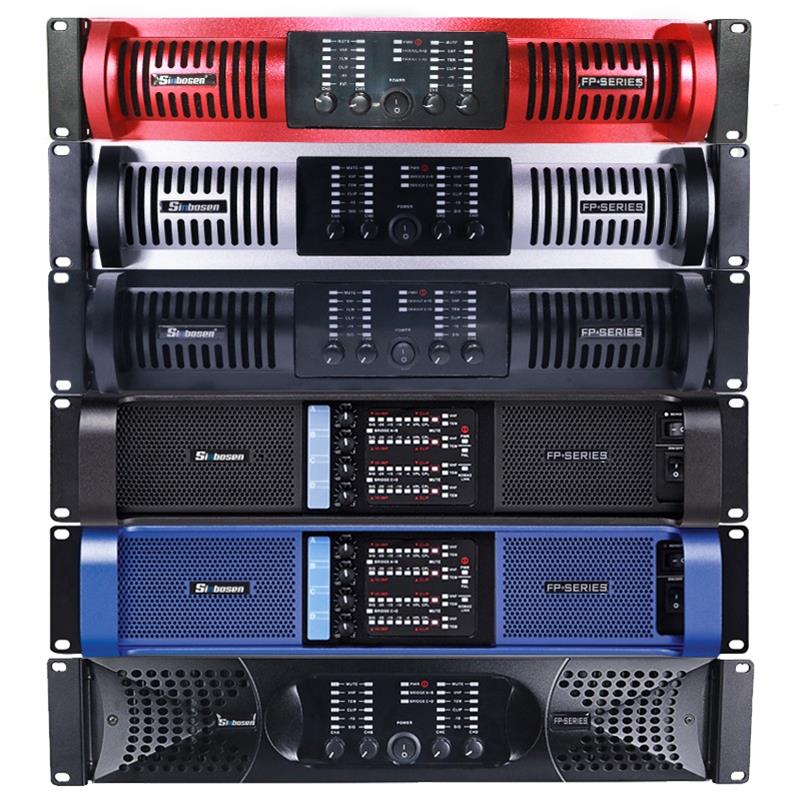

Sinbosen Audio FP Series Amplifier
  DS-30Q DS-9K DS-14K DS-6Q DS-10Q DS-20Q DS-7K
8 ohm Stereo Power  (RMS) 2500WX4 1800WX2 2400WX2 700WX4 1350WX4 2200WX4 1500WX2
4 ohm Stereo Power  (RMS) 4650WX4 3000WX2 4400WX2 1300WX4 2100WX4 4000WX4 2800WX2
8 ohm Bridged Power (RMS) 9300WX2 6000W 8800W 2500WX2 4200WX2 8000WX2 5600W
4 ohm Bridged Power (RMS) 15000WX2 9000W 14000W 3000WX2 5000WX2 9000WX2 7000W
Frequency Response(+o/-0.3dB,1W/8Ω): 20 Hz - 34 kHz
THD 20 Hz - 20 kHz for 1W: <0.1%
Signal-to-Noise Ratio: >112 dBA
Channel separation (Crosstalk) at 1 kHz : >70 dB
Input Connectors (per channel): 3 pin XLR, electronically balanced
Output Connectors (per channel): Binding Posts 2-pole
Class: TD
TourClass Protection: ACL, IGM, AutoRamp, short circuit, DC voltage, turn on/off transient, current inrush, sub/ultrasonic input
Operating voltage, 220V / 110V nominal: 180-240 V / 90-130 V selectable
Voltage Gain(dB): 23, 26, 29, 32, 35, 38, 41, 44 dB selectable
Input impedance: 20 kOhm
Level adjustment (per ch.): Front panel potentiometer, 31 positions detented from -inf to 0 dB
Characteristic
  ►4 Channel Class TD Switching power amplifier
  ►4 x 4,400 Watts into 4 Ohms, 4 x 2,500 Watts into 8 Ohms
  ►Create SUPER sound quality, good for dual 18”/21” subwoofer
  ►Separately controllable on Gain
  ►Scalable Voltage Peak Limiter (VPL)
  ►The bridge-mode operation for Touring Applications
  ►Comprehensive protection scheme

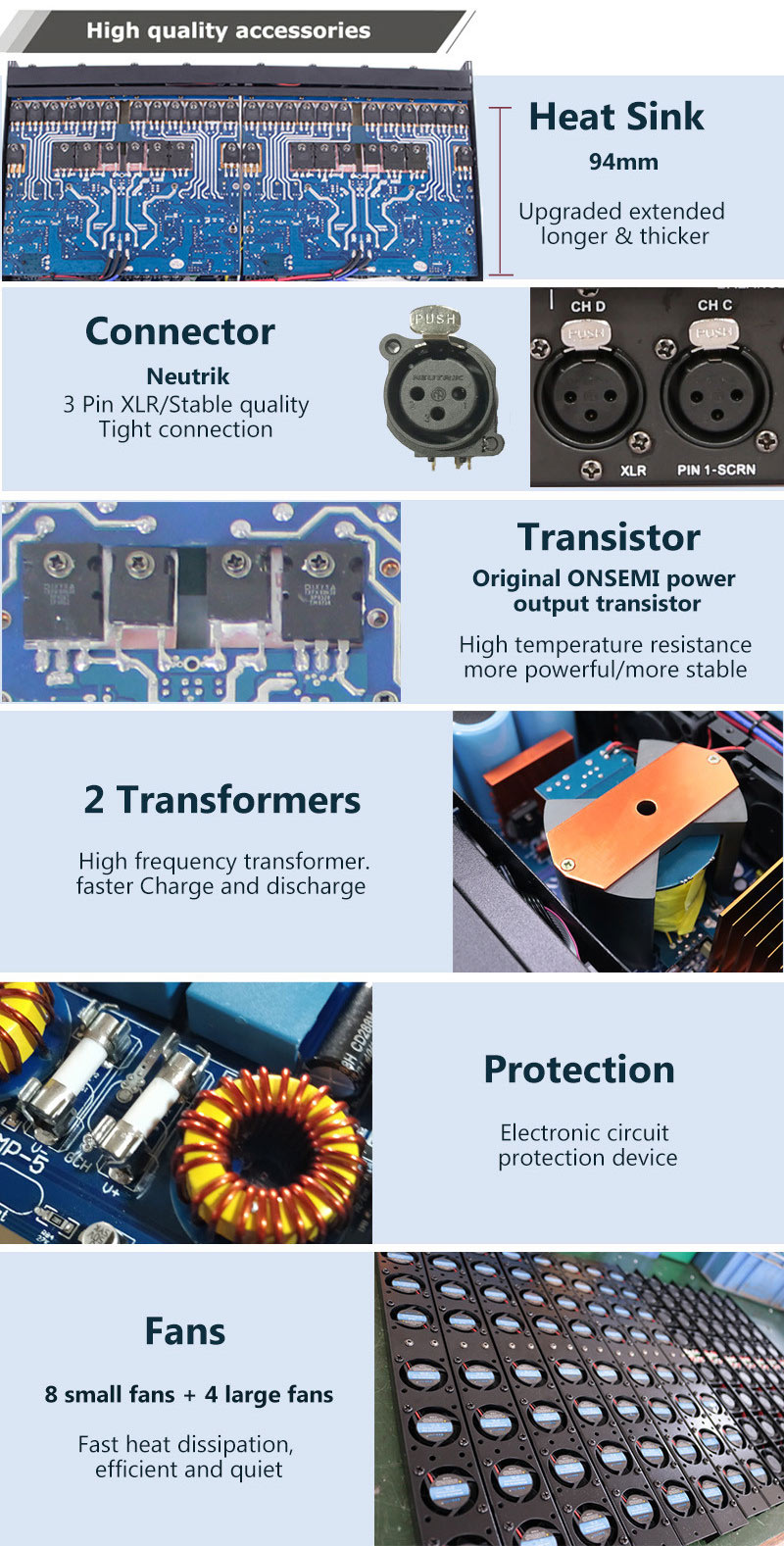

  ►Use Original ONSEMI power output transistor
  ►Neutrik XLR*/Speakon connectors
  ►

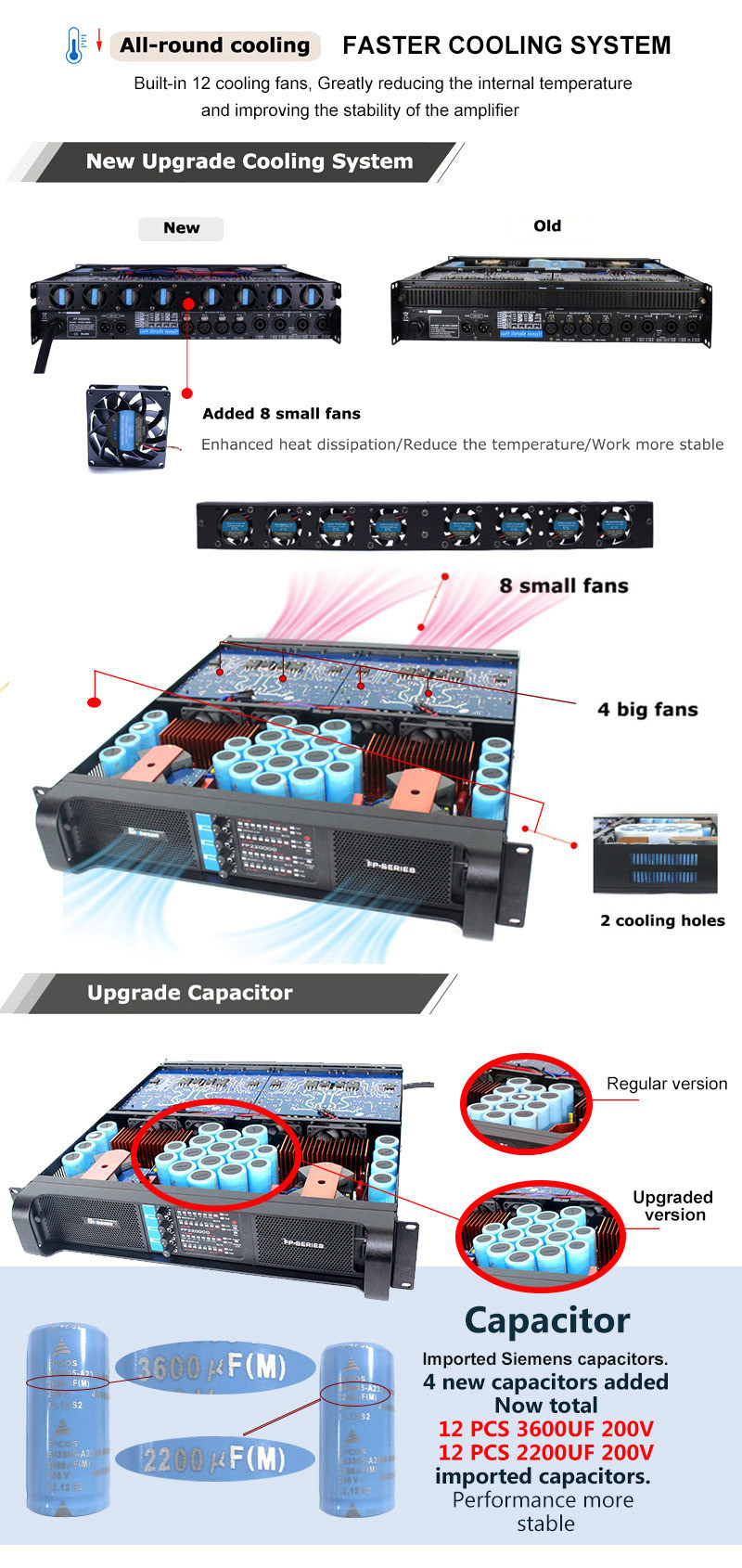

New heat sink
  Upgrade cooling system, added 8 fans on the rear panel.
  Enhance the heat dissipation capability of the amplifier.

  ►Upgrade high-quality capacitors 3600uf/200V
  The old one is 3300UF 200V and now the new is 3600UF 200V. Totally add more 300UF capacity.




























































Sinbosen FP14000 2 channel amp sound stereo amplifier work with 18 inch bass speakers   D4-3000 4 Channel 2 ohms stable High Power Class D Amplifier D4-3000 DSP Sound Audio 2 ohms stable High Power Digital Amplifier   Double 18 inch subwoofer KS28 neodymium audio speaker   Sinbosen DSP20000Q 2200w 4 channel DSP power amplifier with dsp audio software
FP14000 CLASS TD AMPLIFIER
8Ω Power (RMS): 2,400W X 2CH
4Ω Power (RMS): 4,400W X 2CH
  D4-3000 DIGITAL AMPLIFIER
8Ω Power (RMS): 3,000W X 4CH
4Ω Power (RMS): 5,000W X 4CH
2Ω Power (RMS): 6,500W X 4CH
D4-3000 DSP DIGITAL AMPLIFIER
8Ω Power (RMS): 3,000W X 4CH
4Ω Power (RMS): 5,000W X 4CH
2Ω Power (RMS): 6,500W X 4CH


Double 18 inch subwoofer K-28
neodymium audio speaker

  DSP20000Q DSP AMPLIFIER
8Ω Power (RMS): 2,200W X 4CH
4Ω Power (RMS): 4,000W X 4CH
