Sinbosen BDX 260 2 in 6 out crossover digital processor
AUDIO PROCESSOR

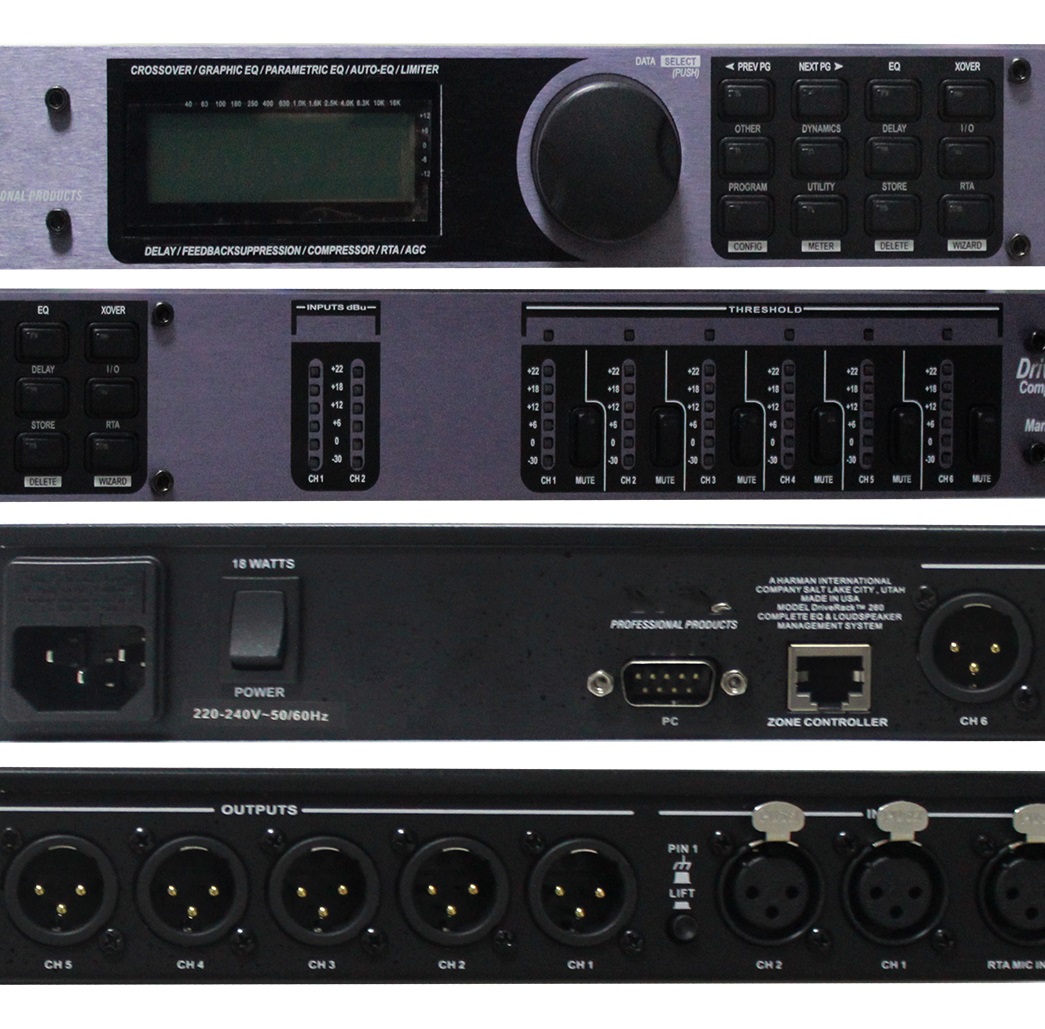

Sinbosen BDX 260 2 in 6 out crossover digital processor

Model: BDX 260
Type: DSP digital audio processor
Number of Channels: 2 input 6 output
Function: Crossover, EQ, delay, and limiter
Third-party control friendly: yes
Application: Concert, stage, KTV, Home Theatre
Warranty: 2 years
Description
The 260 digital audio processor has two sets of inputs, six sets of outputs, and the front end of both sets of inputs includes a 28-segment graphic equalization with a total of 2.7 seconds of digital delay resources.

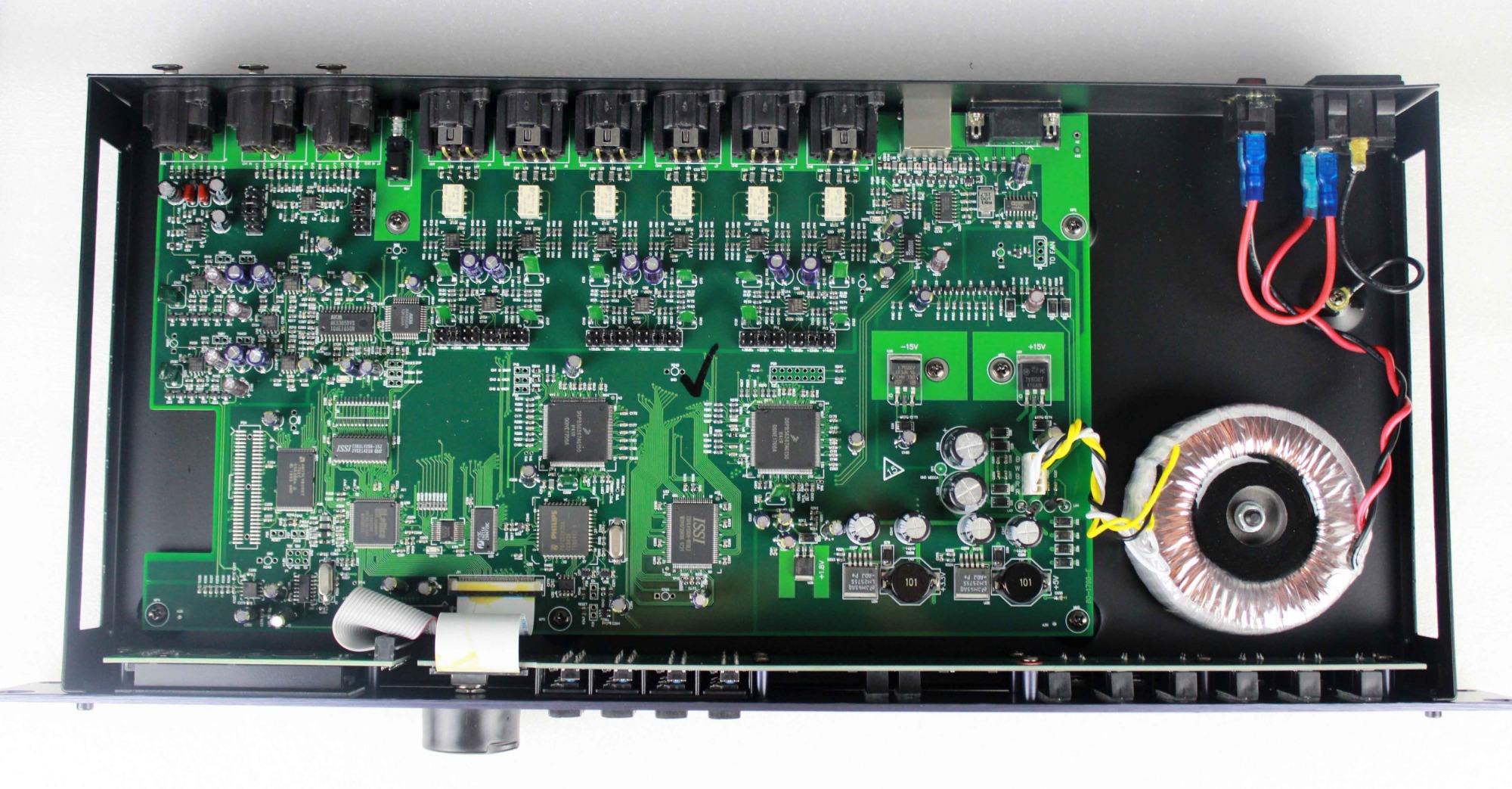

  Internal


Type : 260 digital audio processor
Model Number : BDX 260
Processor: BDX Digital Processing Core
Number of Channels: 2 input 6 output
Power Supply: Switching  Power Supply
Operating Voltage: AC 230V/50-60Hz
Power Requirements: 18 Watts
Input Connectors: Female XLR (Line), XLR  RTA (Mic)
Output Connectors: Male XLR
Output /Input Type: Electronically balanced, RF filtered
Input Impedance: >40 kΩ
Output Impedance: 120 Ω
Dynamic Range (unweighted/weighted): >110 dB / >107 dB
THD+Noise @ 1 kHz: 0.002% typical
Frequency Response: 20 Hz–20 kHz(±0.5dB)
Interchannel Crosstalk: >110 dB, 120 dB typical
Propagation Delay: 0.6 MSecond



  Connection diagram




  260 digital audio processor package list:
-260 digital audio processor 1
-Power cable 1
-PC cable 1
- CD 1
- Instructions 1
