Passive Speaker

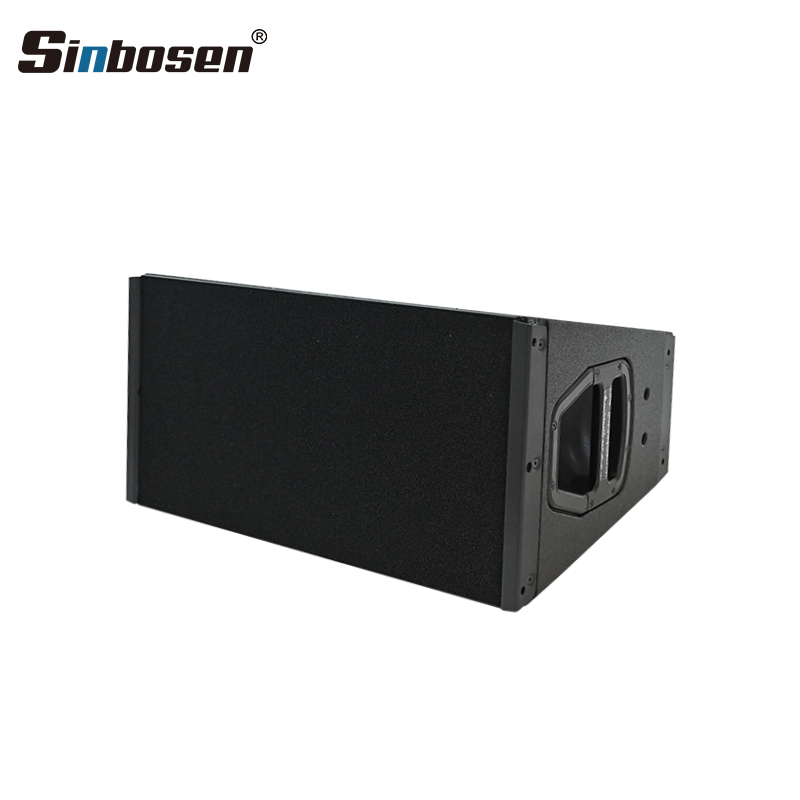

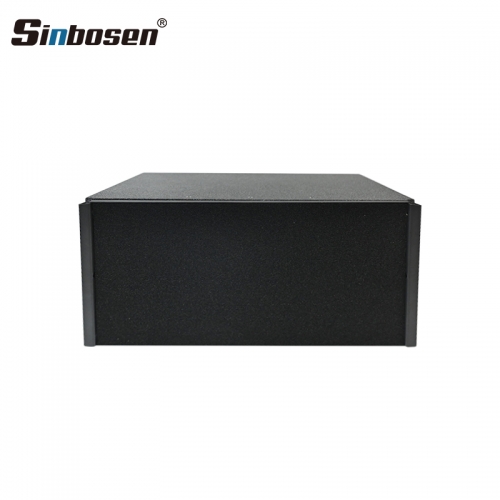

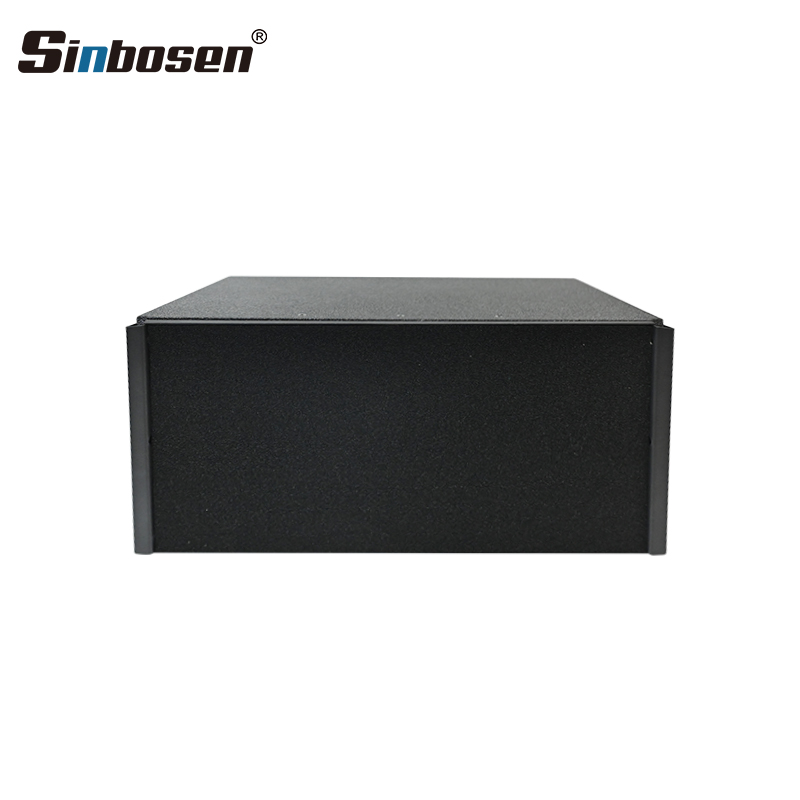

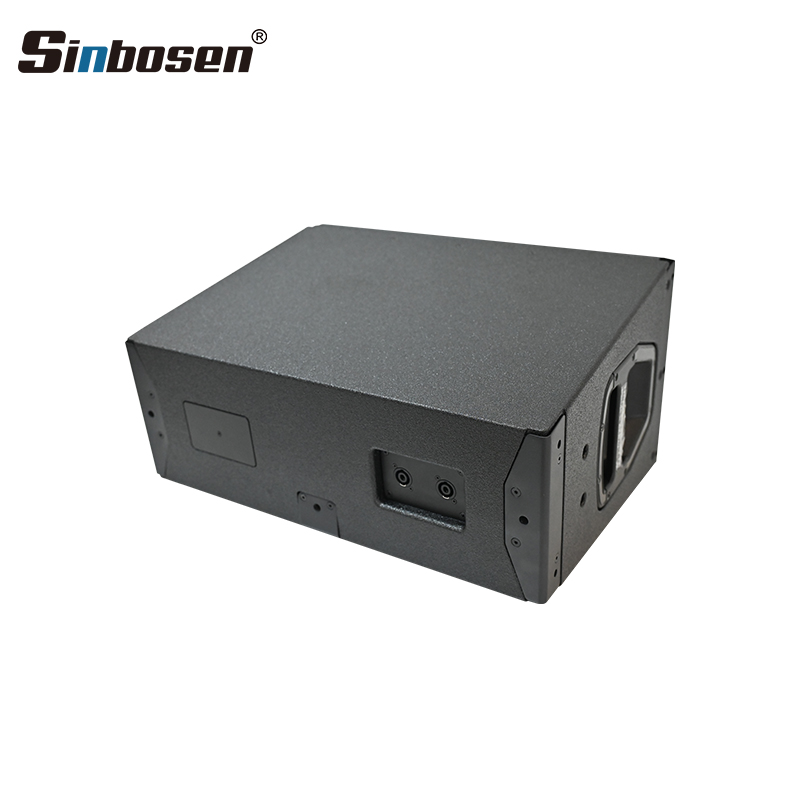

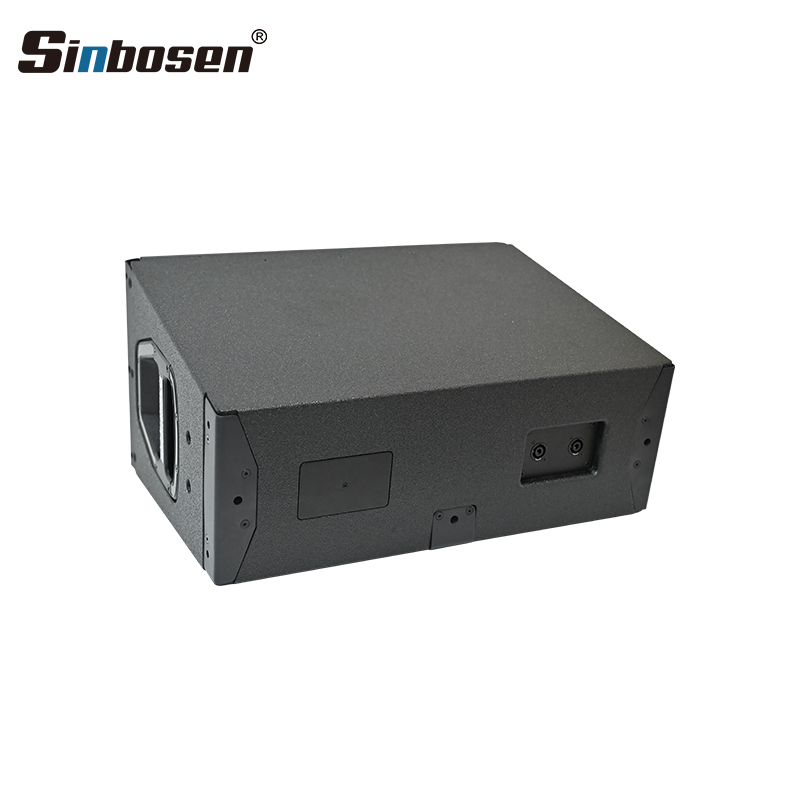

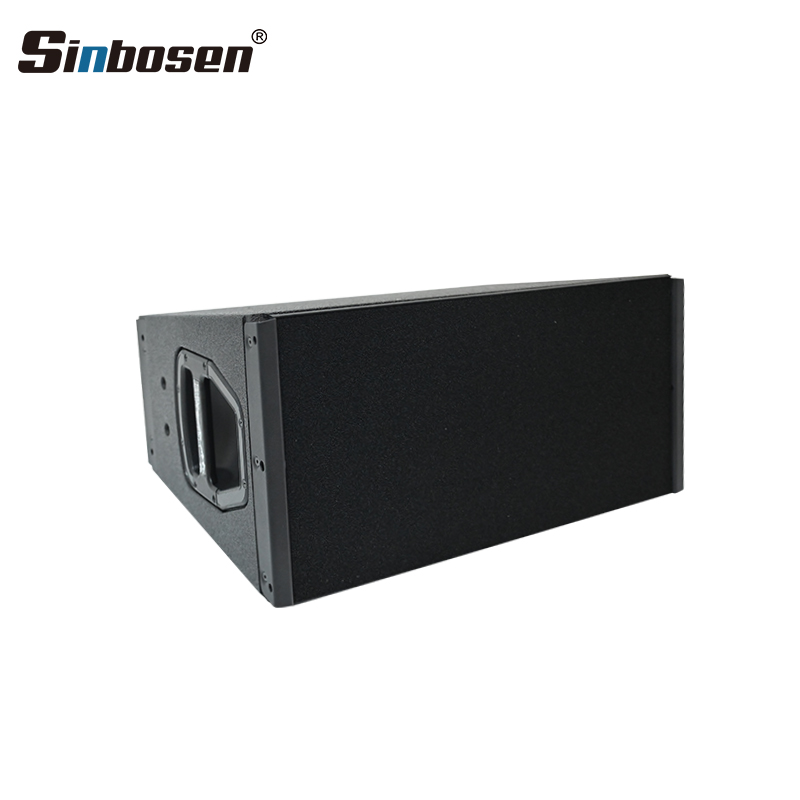

QT-01 Dual 10-inch 2 way RMS 400W Line Array Speaker
Item No.: QT-01
Components 2 x 10"/1.3"
Dispersion 75° x 15°
SPLmax 139 dB
Dispersion 75° x 15°
SPLmax 139 dB
Description
|
Specification
|
|
|
Frequency response (-5 dB standard)
|
60 Hz - 17 kHz
|
|
Maximum SPL
|
139 dB
|
|
Power handling capacity (RMS/peak 10 ms)
|
400/1600 W
|
|
Nominal impedance
|
8 ohms
|
|
Nominal dispersion angle (h x v)
|
75° x 15°
|
|
Components
|
2 x 10" driver/1.3" compression driver
|
|
Cabinet
|
Birch plywood ,Resistant paint finish
|
|

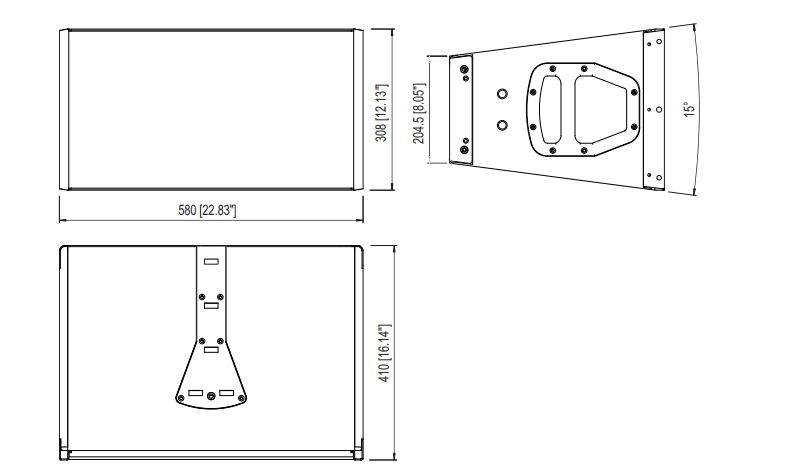

Dimensions (H x W x D)
|
308 x 580 x 410 mm
|
|
12.1 x 22.8 x 16.1"
|
|
|
weight
|
22 kg / 49 lb
|
| QT-01 2-Way double 10 inch line array |
| 1. LF: 2x10”; HF: 1x3” neodymium Driver. |
| 2. Driver with 75mm voice coil which is durable and working high efficiency. |
| 3. The mechanical and acoustical design of the cabinet enables vertical splay angles to be set between 0°and 14°. |
| 4. Smooth frequency and phase response. |
| 5. Extremly high SPL and volume ratio. |
