Overseas Warehouse Preparing Stock

Sinbosen will prepare XT-05 demo units in the overseas warehouse (European/Mexico warehouse). The standard configuration includes a flight case with 2 units of XT-05 and 2 U-brackets. Note: Other speaker models available in the overseas warehouse include the KA208 V3.0 neodymium dual 8-inch line array speaker, KA208 V1.0 ferrite dual 8-inch line array speaker, and KA210 V1.0 ferrite dual 10-inch line array speaker. The overseas warehouse has limited stock and only supports the purchase of demo units! We welcome you to purchase demo units for sound testing before making bulk purchases from China!

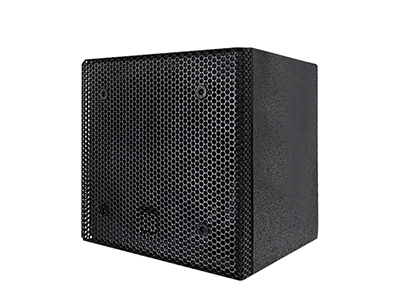

The enclosure design of the XT-05

The XT-05 enclosure is constructed from first-grade Russia birch plywood, maximizing acoustic and mechanical integrity. It is coated with a waterproof polyurea finish. Weighing only 3.5 kg, its ultra-compact size allows for easy integration into any environment. As a 5-inch format loudspeaker, the XT-05 delivers exceptional output and broad bandwidth for its size, ensuring premium sonic performance with minimal visual impact. The lightweight XT-05 has a perfectly cubic shape, ensuring consistent sound reinforcement in any orientation.

Acoustic Design - Coaxial Technology

The XT-05 is a two-way passive loudspeaker equipped with 1 × 5″ cone driver and 1 × 1″ diaphragm compression driver. The transducers are mounted coaxially to produce a 110° axisymmetric directivity and deliver a smooth tonal response across the entire frequency range, free of secondary lobes. The coaxial design aligns the acoustic centers of the low-frequency (LF) and high-frequency (HF) drivers to achieve single-point source radiation with a coherent wavefront at all frequencies, avoiding the polar lobing effects typical of traditional horn and woofer combinations. This results in a natural studio monitor sound quality, making it ideal for proximity use.

Flexible Mounting - 6$ extra, optional

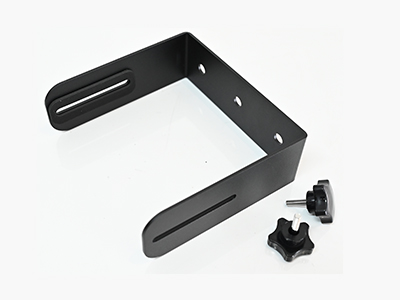

with the U-bracket that offers wall-mount/ceiling mount options and various orientations.

Application

XT-05 is an ideal fill enclosure due to its capability to deliver a high SPL in the MF/HF region and complement larger systems. In distributed applications, sound designers can take advantage of its wide conical directivity pattern offering a smooth off-axis response, where most of the audience is located. Its ultra-compact format means that it can satisfy any architectural requirement.

On its own, XT-05 is an ideal complement to larger systems in venues that require easy and discreet integration such as theaters, houses of worship, corporate facilities and studios. Supplemented by a subwoofer, XT-05 is also perfect as a distributed background music system in bars, restaurant, conference rooms, museums and other hospitality venues.

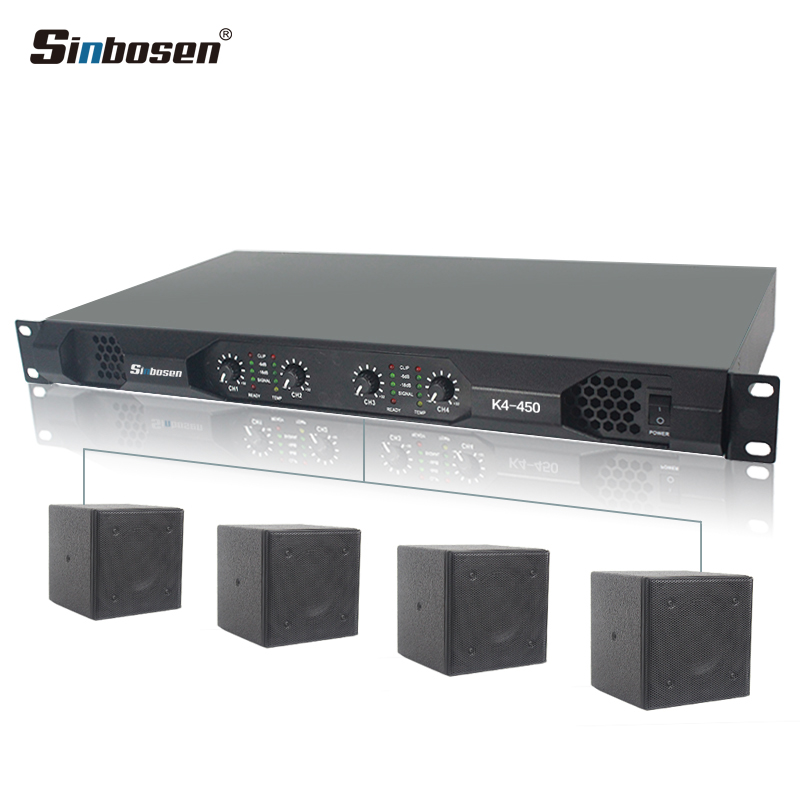

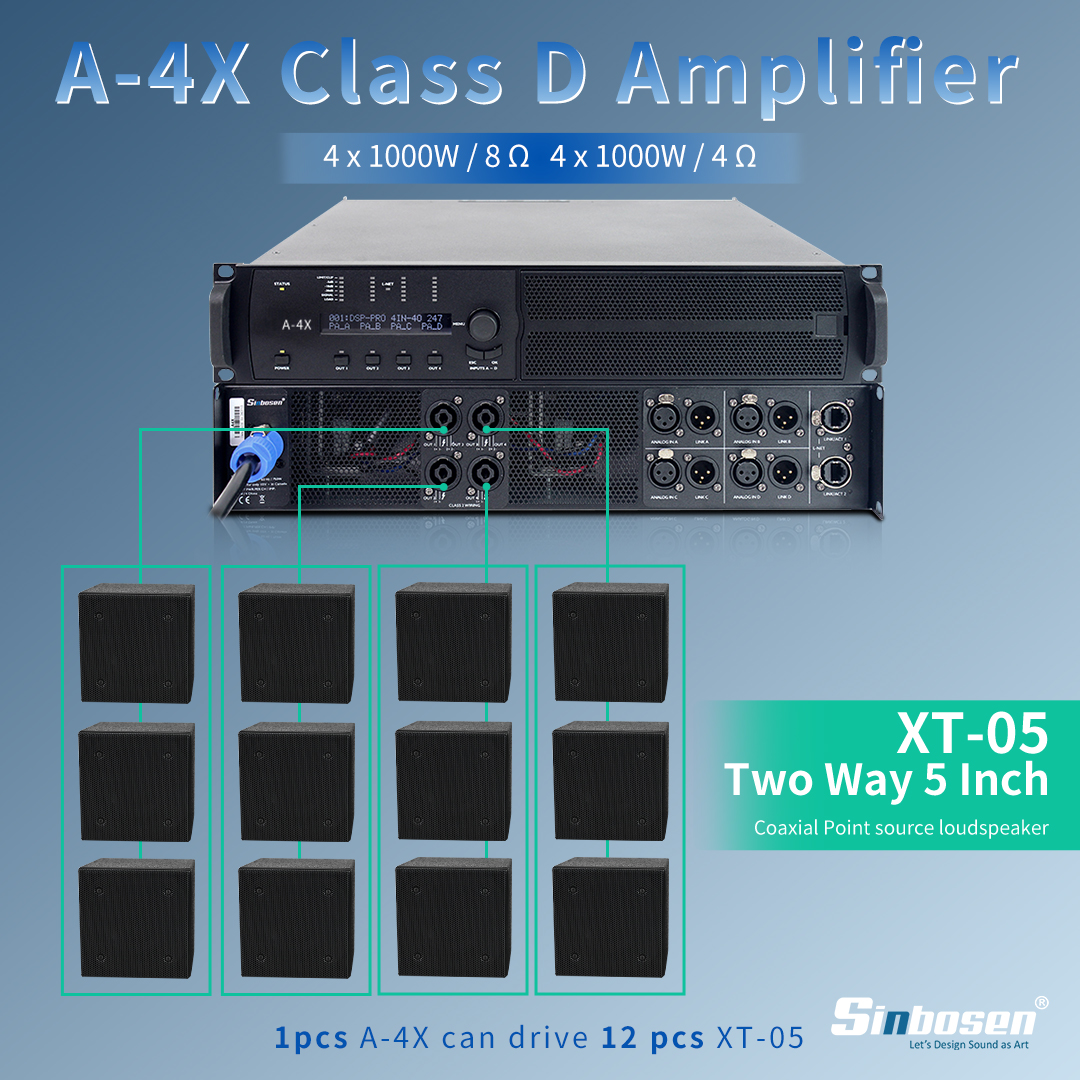

Amplifier Matching



Transportation

①Optional Carton Packaging
For shipments to Europe via sea freight, truck freight, or rail, it is recommended to pack four units in a carton to avoid overweight charges.

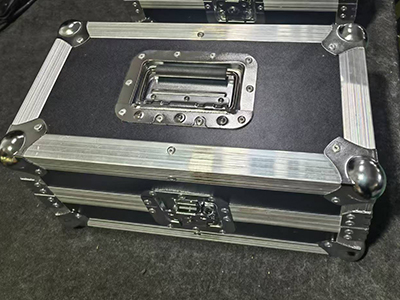

②Optional Flight Case Packaging
Flight case for 2pcs XT-05 and 2pcs U-bracket, with handle.


XT-05	U-bracket	Flight case
