Coaxial Speaker
High Performance 15 Inch 2 Way Coaxial Stage Monitor Speaker
Item No.: MT-04
Type: Active/Passive
Frequency response: 55 Hz - 17 kHz
Maximum SPL: 135 dB
Nominal impeadance: 8 Ω
Weight: 20 kg / 44 lb
Frequency response: 55 Hz - 17 kHz
Maximum SPL: 135 dB
Nominal impeadance: 8 Ω
Weight: 20 kg / 44 lb
Description
|
MT-04 2-way stage monitor Specification
|
|
|
Frequency response (-5 dB standard)
|
55 Hz - 17 kHz
|
|
Maximum SPL
|
140 dB
|
|
Nominal impeadance
|
8 Ω
|
|
Power handling capacity (RMS/peak 10 ms)
|
400/1600 W
|
|
Nominal dispersion angle (h x v)
|
50° x 70° rotatable
|
|
Components
|
15" driver with neodymium magnet
|
|
15" driver with neodymium magnet
coaxial 1.3" exit compression driver with 3" coil |
|
|
Dimensions (H x W x D)
|
363 x 580 x 505 mm
|
|
Connector
|
2 x NLT4 F/M
optional 2 x NL4 |
|
Weight
|
20 kg / 44 lb
|
| FEATURE |
| ► Its constant pointing angle of 50°x 70° (horizontal x vertical) provides accurate coverage of the stage area. |
| ► The MT-4 can also be operated in 2-Way Active mode.And it also have passive version. |
| ► When the cabinet is arranged vertically, the MT-4 can be used as a powerful main expansion system with a 70° x 50° dispersion suitable for a variety of applications. |
| ► For fixed installations, the coverage angle of the MT-4 driver assembly can be rotated in 45° increments. |
| ► The MT-4 speaker cabinet has an anti-collision coating and is equipped with multiple handles, screw holes and a socket for mounting a speaker stand. |

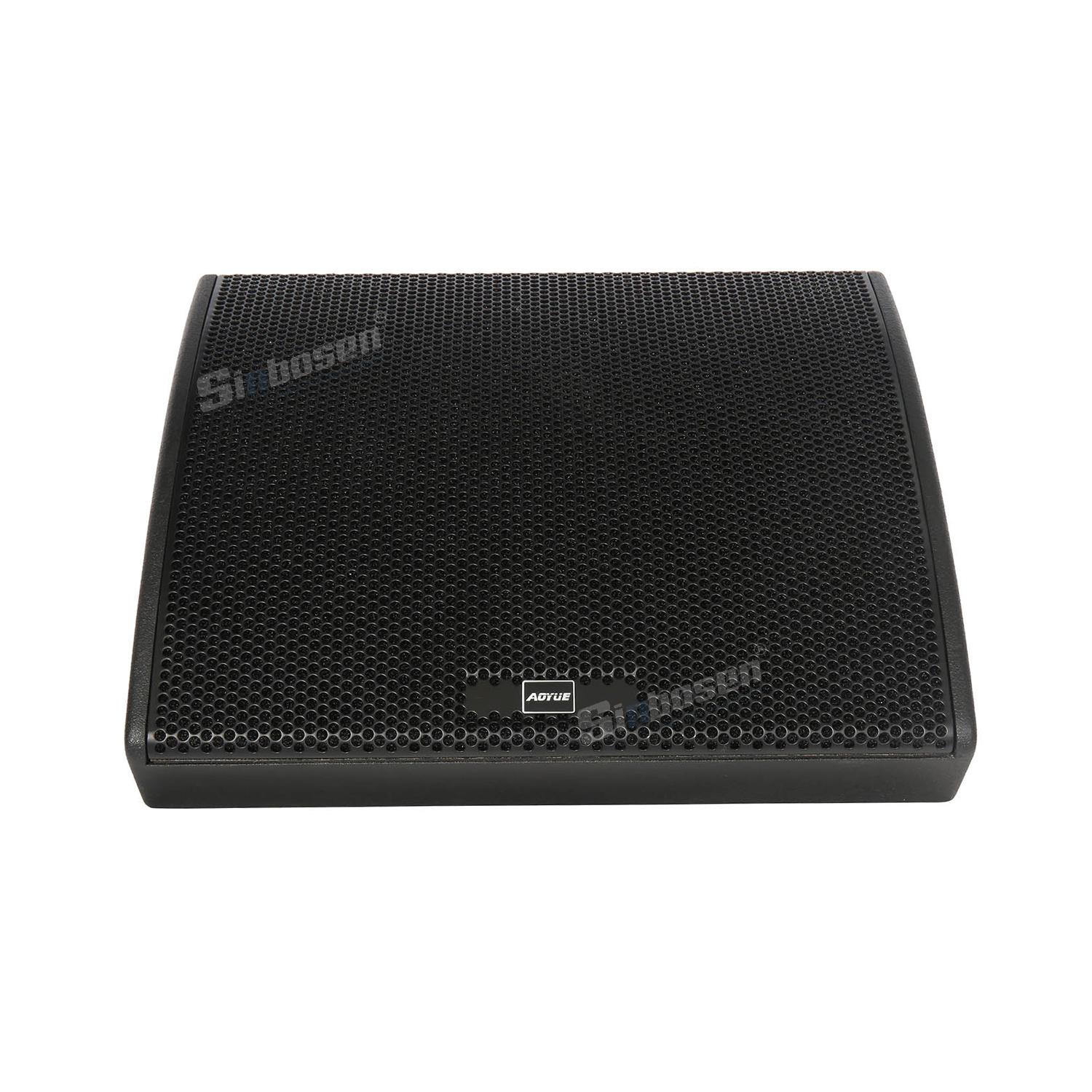

| ► The front of the speaker cabinet is protected by a rigid metal grille. |
| ► The bottom panel has two anti-slip strips to protect the cabinet from scratching and prevents movement. |

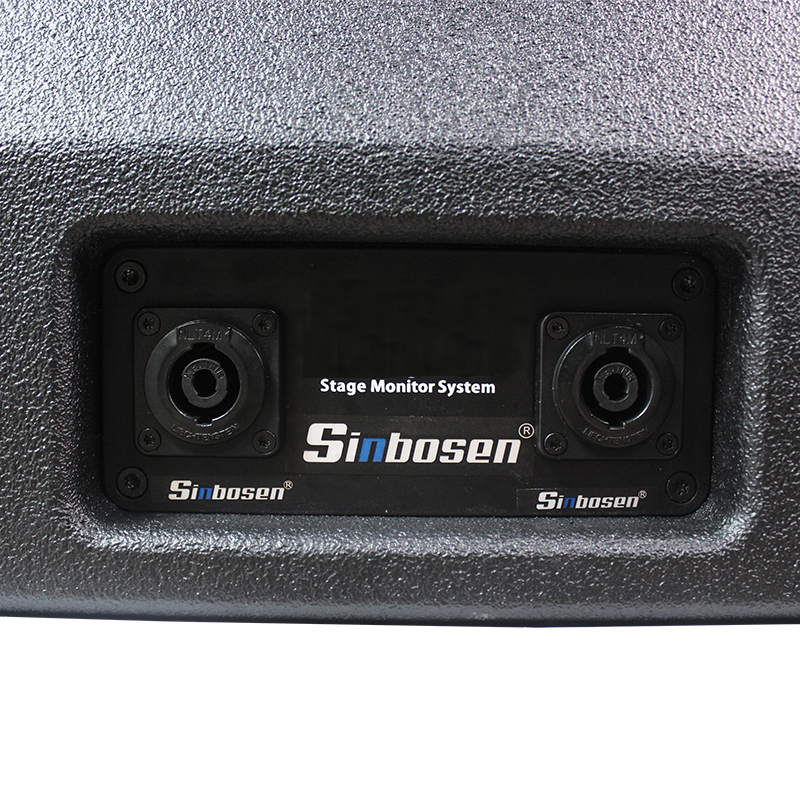

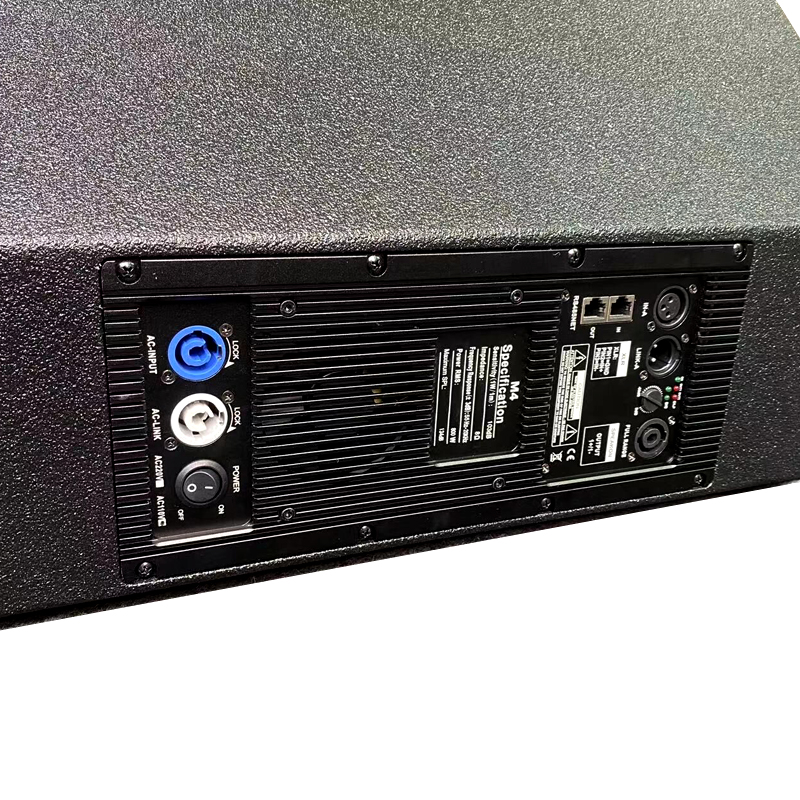

| PASSIVE Rear Connection Panel | ACTIVE Rear Connection Panel |
 |
 |
