Subwoofer Speaker
BT-22 Bar Sound Reinforcement Double 18 Inch Subwoofer
Item No.: BT-22
Model: BT-22
Components 18"/18"
Dispersion Omni directional
SPLmax 143 dB
Components 18"/18"
Dispersion Omni directional
SPLmax 143 dB
Description
|
BT-22 Specification
|
|
|
Frequency Response (-5dB default)
|
37 Hz - 90 Hz
|
|
Maximum SPL
|
143 dB
|
|
Nominal impedance
|
4 Ω
|
|
Resilience (RMS/peak 10 ms)
|
1000/4000 W
|
|
Assembly
|
2 x 18" driver with neodymium magnet
|
|
Connections
|
2 x NLT4 F/M
|
|
optional 2 x EP5
|
|
|

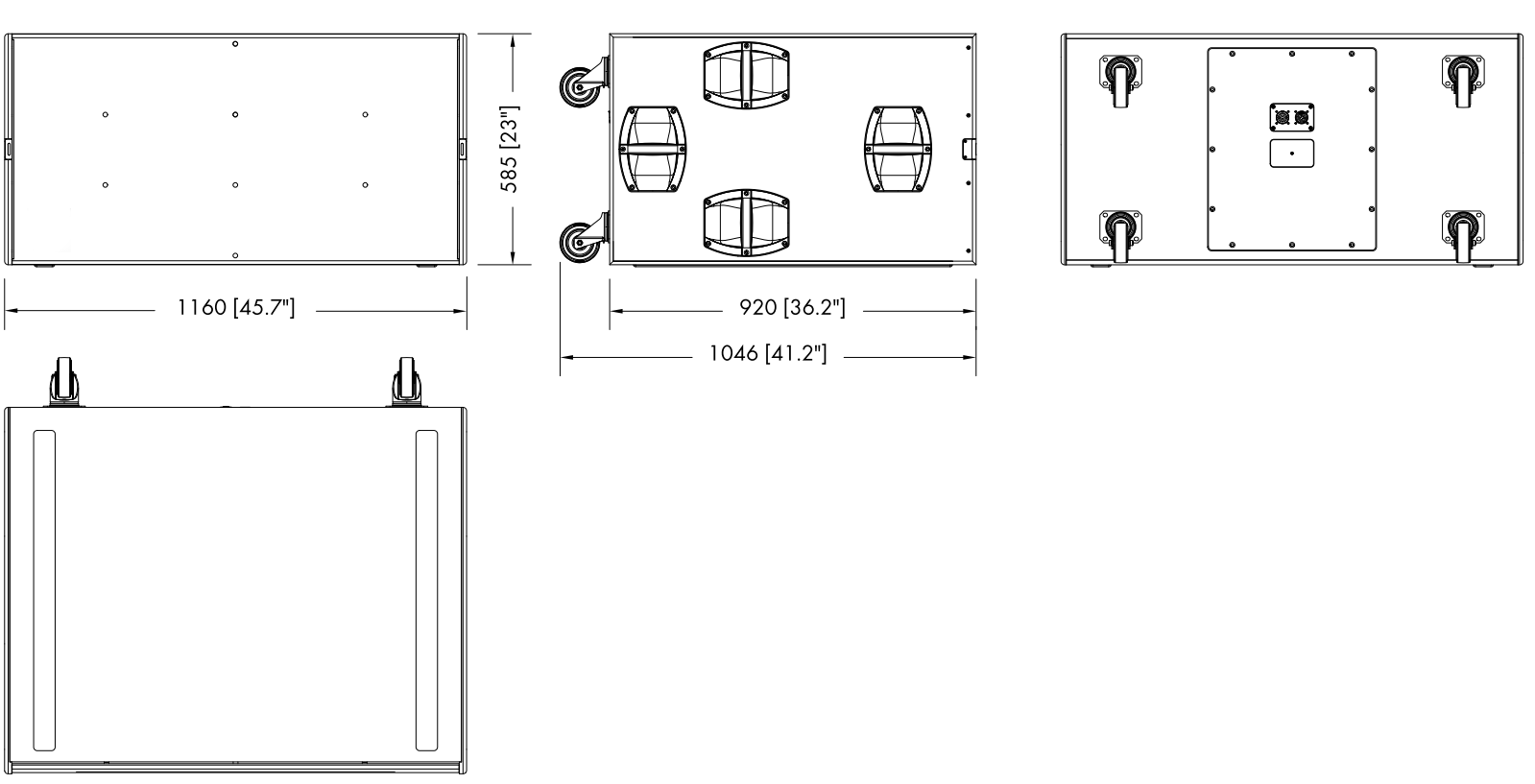

Dimensions (H x B x T)
|
585 x 1160 x 920 / 1046 mm
|
|
23 x 45.7 x 36.2 / 41.2"
|
|
|
Weight
|
106 kg (234 lb)
|
BT-22 is used in conjunction with other ultra-low frequency speakers by expanding the system frequency response. When using three or any multiple of three BT-22 ultra-low frequency speakers, they can be placed in a heart-shaped ultra-low frequency speaker array to achieve impressive directional control under lower frequency conditions, significantly reducing the energy radiated backwards.
| BT-22 SUBWOOFER FEATURE |
| 1.2 x 18 inch long excursion neodymium woofer. |
| 2.High performance subwoofer intended for ground stacked applications. |
| 3.Designed for large format sound reinforcement application. |
| 4.The enclosure features two runners to protect the bottom panel from scratching. |
| 5.Can be used to complement other subwoofers by extending the frequency response of the system. |
| 6.Weather protected Polyurea Cabinet Protection finish. |
