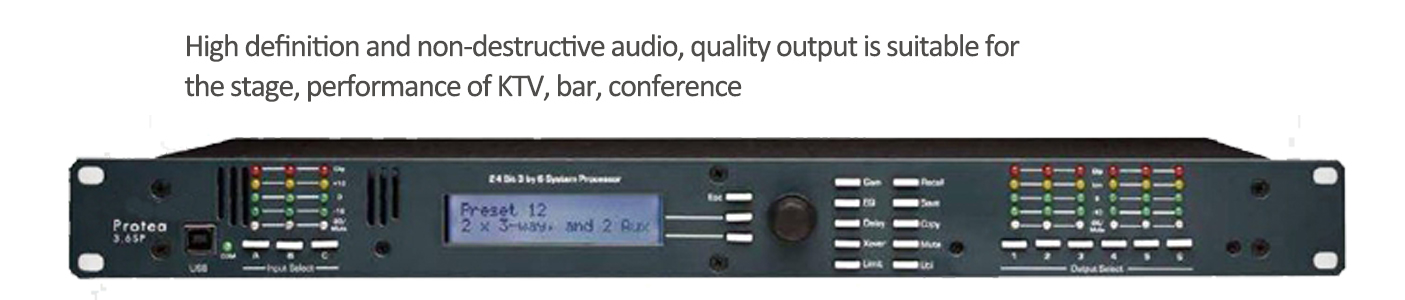

Sinbosen 3.6sp digital audio processor can be operated by computer
AUDIO PROCESSOR

Sinbosen 3.6sp digital audio processor can be operated by computer

Model: 3.6sp
Type: DSP digital audio processor

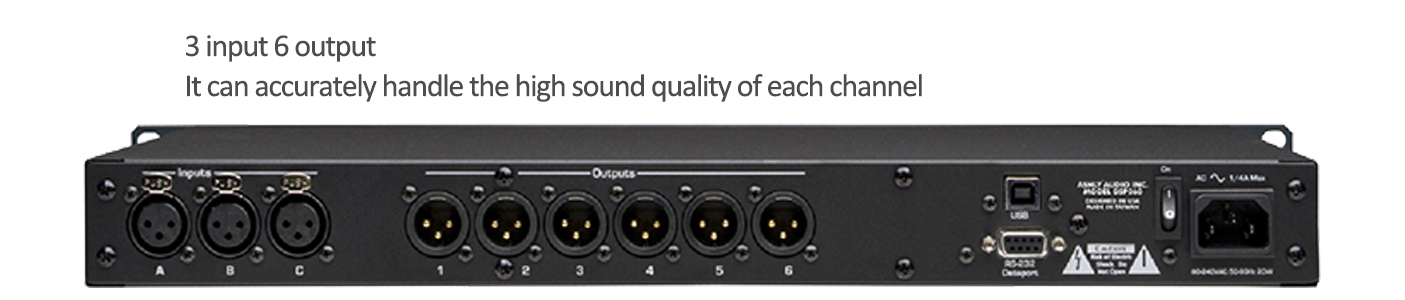

Number of Channels: 3 input 6 output
Function: Crossover, EQ, delay and limiter
Third-party control friendly: yes
Warranty: 2 years
Description





Specifications
Input Active Balanced, 18k Ohms
Input Level +20dBu (Max)
Input Gain Range -40dB—+12dB
Output Active Balanced, 112 Ohms
Output Level +20dBu (Max)
Output Gain Range -40dB-+12dB
Weights, Dimensions & Power
Unit Weight SP3.6:7lbs (9.54kg) SP4.8:7.3lbs (3.3kg)
Shipping Weight SP3.6/SP4.8: lOlbs (5kg)
Environmental 40°F-120°F (4°C-49°C) noncondensing
Dimensions 19" L x 1.75" H x 8.5" D (483mm x 89mm x 216mm)
AC Requirements Universal Power Supply, 100-240VAC, 50/60Hz, 20W
Equalizer
EQ Filter Types 1st or 2nd Order High or Low Shelf, Parametric
Shelving Filter Boost/Cut Range ±15dB
Shelving Filter Frequency Range Low Shelf: 19.7Hz—2kHz, High Shelf: 3.8kHz-21.9kHz
Parametric Filter Boost/Cut Range +15dB/-30dB
Parametric Filter Frequency Range 19.7Hz-21.9kHz, 1/24 Octave Steps
Parametric Filter Bandwidth Four Octaves to 1/64 Octave
Delay
Input/Output Delay 0-682ms
Crossover
HPF/LPF Frequency Range 19.7Hz—21.9kHz, Off
Available Filter Types 12dB/0ct Butterworth ;12dB/0ct Bessel
12dB/0ct linkwitz-Riley ;18dB/0ct Bessel
18dB/0ct Linkwitz-Riley ;24dB/Oct Butterworth
24dB/Oct Bessel ;24dB/Oct Linkwitz-Riley
48dB/Oct Butterworth ;48dB/Oct Bessel
48dB/Oct Linkwitz-Riley
Limiter
Threshold Range -20dBu-+20dBu
Ratio Range 1.2:1 to °°:1
Attack Time Range 0.5ms-50ms
Release Time Range 10ms-lSec
Frequency Response 20Hz—20kHz, ±0.25dB
THD <0.01% @ 1kHz, +20dBu
Dynamic Range >110dB, 20Hz-20kHz unweighted
Audio Sampling Rate 48kHz
Propagation Delay 1.46ms
Signal LEDs (dBu or VU)
Inputs -20/Mute,-10,0,+10, Clip
Outputs -20/Mute, -10,0, Limit Threshold, Clip


✔ Front Panel Parameter Control
✔ Single rack space with XLR audio connections
✔ Extremely ive user interface
✔ Crossover, EQ, delay and limiter functions
✔ Outputs assignable to any input
✔ Front panel or PC programming and control with 4 levels of security
✔ USB and RS-232 interface
✔ Third-party control friendly
✔ Balanced inputs and outputs
✔ Linkwitz-Riley, Bessel and Butterworth filters
✔ 12, 18, 24 and 48dB/octave slopes
✔ Parametric EQ: 1/64th to 4 octave range
✔ 682ms input and output delay (1,364ms total)
✔ Limiter on each output
✔ Individual input and output metering
✔ Safety/Compliance: CE, FCC, RoHS
