Sinbosen 2 ohms stable H-1700 Class D digital power amplifier for full range speakers
DIGITAL AMPLIFIER

Sinbosen 2 ohms stable H-1700 Class D digital power amplifier for full range speakers

Model: H-1700
Channel: 2 channel power amplifier
Output Power:
8Ω Stereo Power (RMS): 1700W X 2CH
4Ω Stereo Power (RMS): 2800W X 2CH
2Ω Stereo Power (RMS): 3600W X 2CH
Class: D
Certification: CE, ROHS, TUV
Warranty: 3 Years
Special service: OEM
Description




Sinbosen H-1700 1U 2 Ohms Stable Digital Power Amplifier

  H-1700 2 Ohms Stable
8Ω Output power:  2x1700W
4Ω Output power:  2x2800W
2Ω Output power:  2x3600W
8Ω Bridge power:  5600W
4Ω Bridge power:  7200W
net weight: 8.35KG
Gross weight: 9.5KG
Input resistance Balance/unbalance >20kΩ/>10kΩ
Total harmonic distortion 1KHz sine <0.035%
Frequency response 20Hz-20kHz <+/- 0.5dB
Signal to noise ratio   >106dB
Damping coefficient   >600
Conversion rate   >20V/us
Input sensitivity:   32dB, 1V, 0.775V
Minimum load impedance Stereo
Wind direction:   Blowing from the front to the rear, the temperature controls the wind speed
Protective function:   Soft start, VHF, DC, short circuit, overload, clipping / distortion limit, thermal
Packing Size (H x W x D) 540 x 400 x 120 (mm)
A perfect Sound reinforcement used in multiple ranges of home and paging applications such as home, theater, office, malls.

The H-1700 amplifier is a 1U Class D digital power amplifier .It is  the only amplifier can stay stable in the 2 ohms state.1U class D digital power amplifiers are popular among users at home and abroad because of their environmental protection, energy saving, small size and utilizationrate of more than 97%. Products are sold in Europe, America and other countries.







Feature

1. 2 Channel
Class TD digital power amplifier.
2. 2 x 3,600 Watts into 2 Ohms,2 x 2,800 Watts into 4 Ohms,2 x 1,700 Watts into 8 Ohms.
3. Creat SUPER sound quality.
4. Neutrik XLR*/Speakon connectors.
5. Low electricity consumption and powerful output.

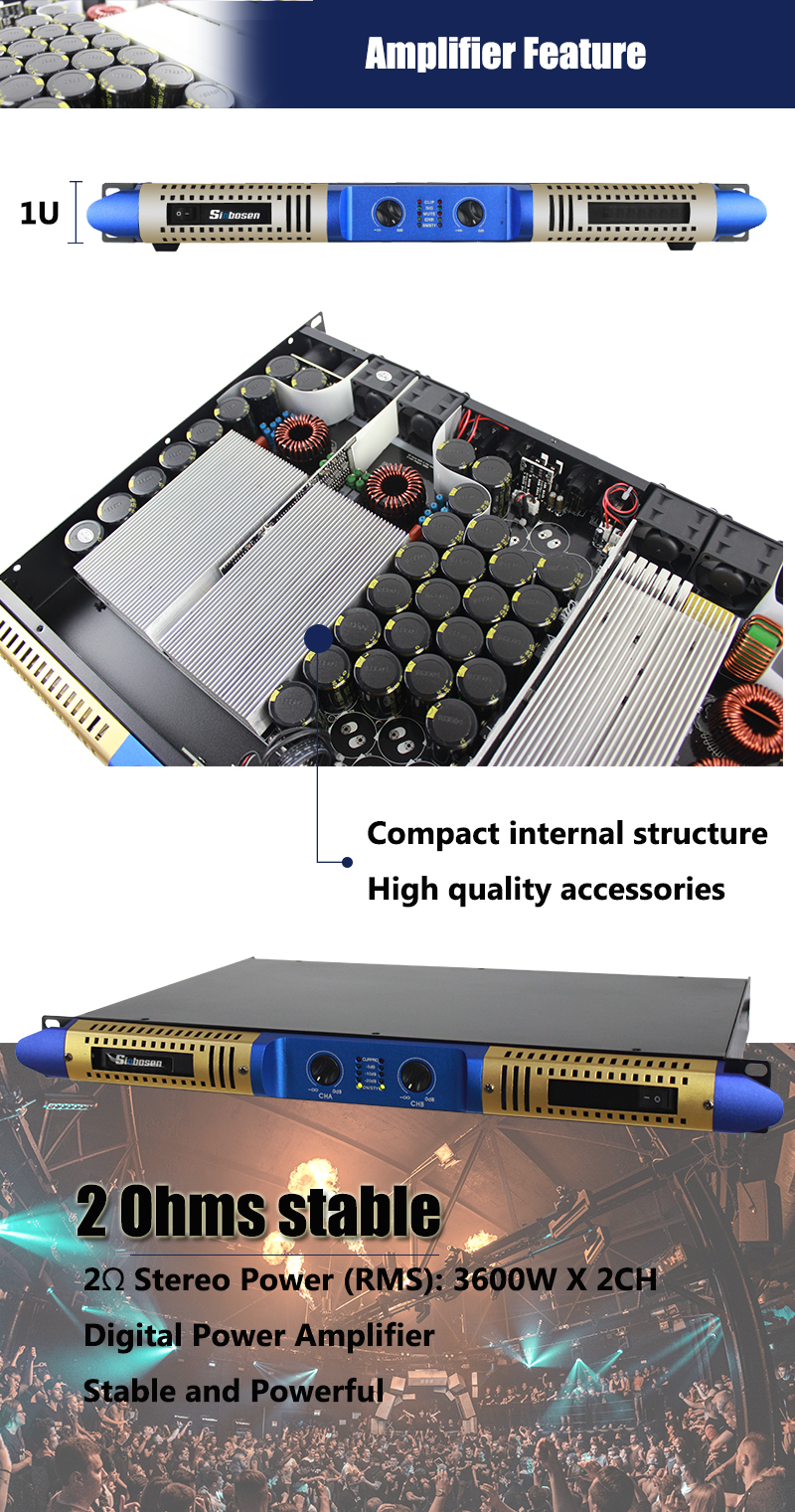

6. Only 1U height and light weight(Net weight: 8.35KG), easy to carry and install.
7. Active power factor correction technique (PFC), can work with high stability under full voltage range 90-264V and stay stable in the 2 ohms state.
8. Use high-quality fans to make wind flow front to the rear.

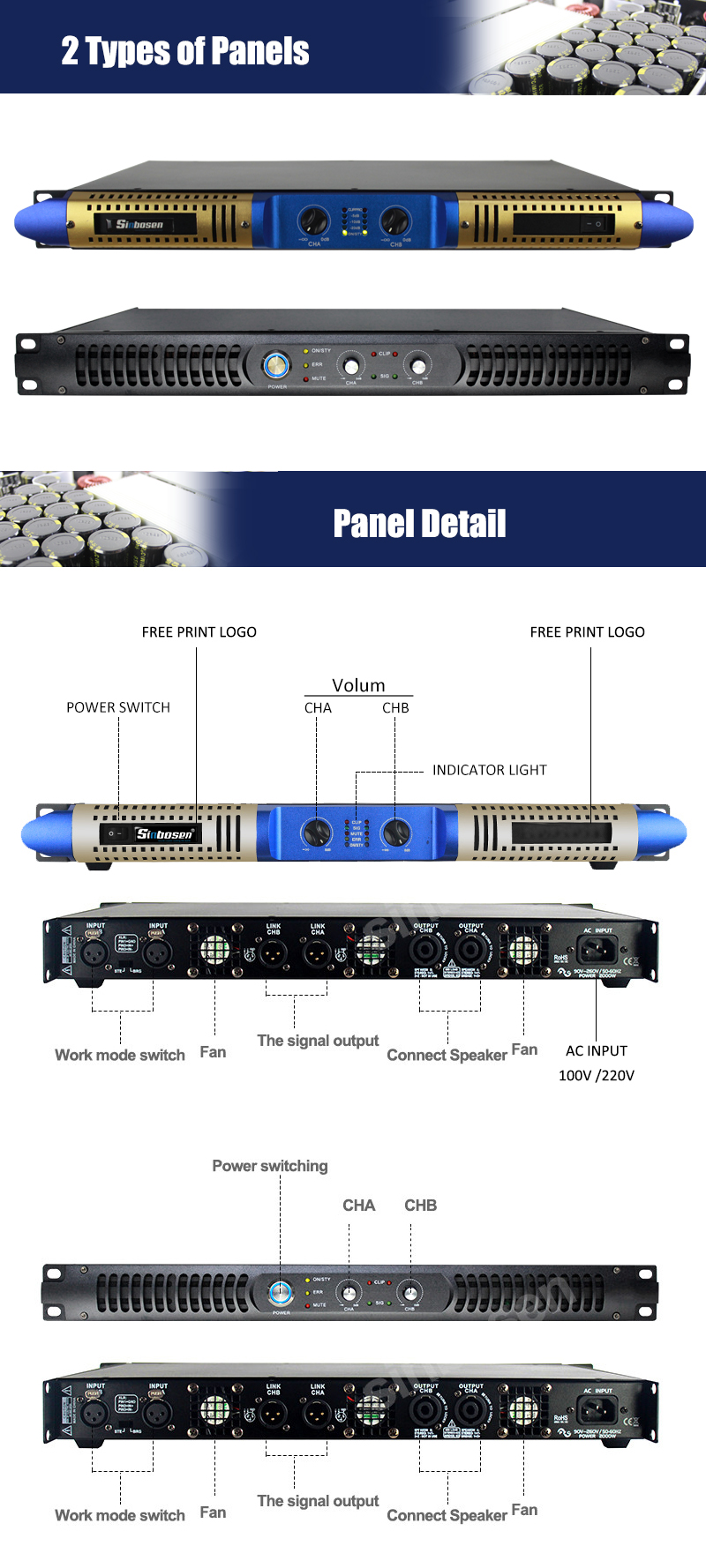

9. Accurate volume control, switch on/off, signal, clip and protection LED light in the front panel.
10. Fully automatic protections against the direct current, overheat, overload, on/off switching, RF and amplitude limit.
11. Suitable for live show, stadium, and flow performance,outdoor event.
